FIBER SPLICING TRAILERS

Engineered with an all-aluminum frame and composite panel construction, our stud-less design is the right solution for you!

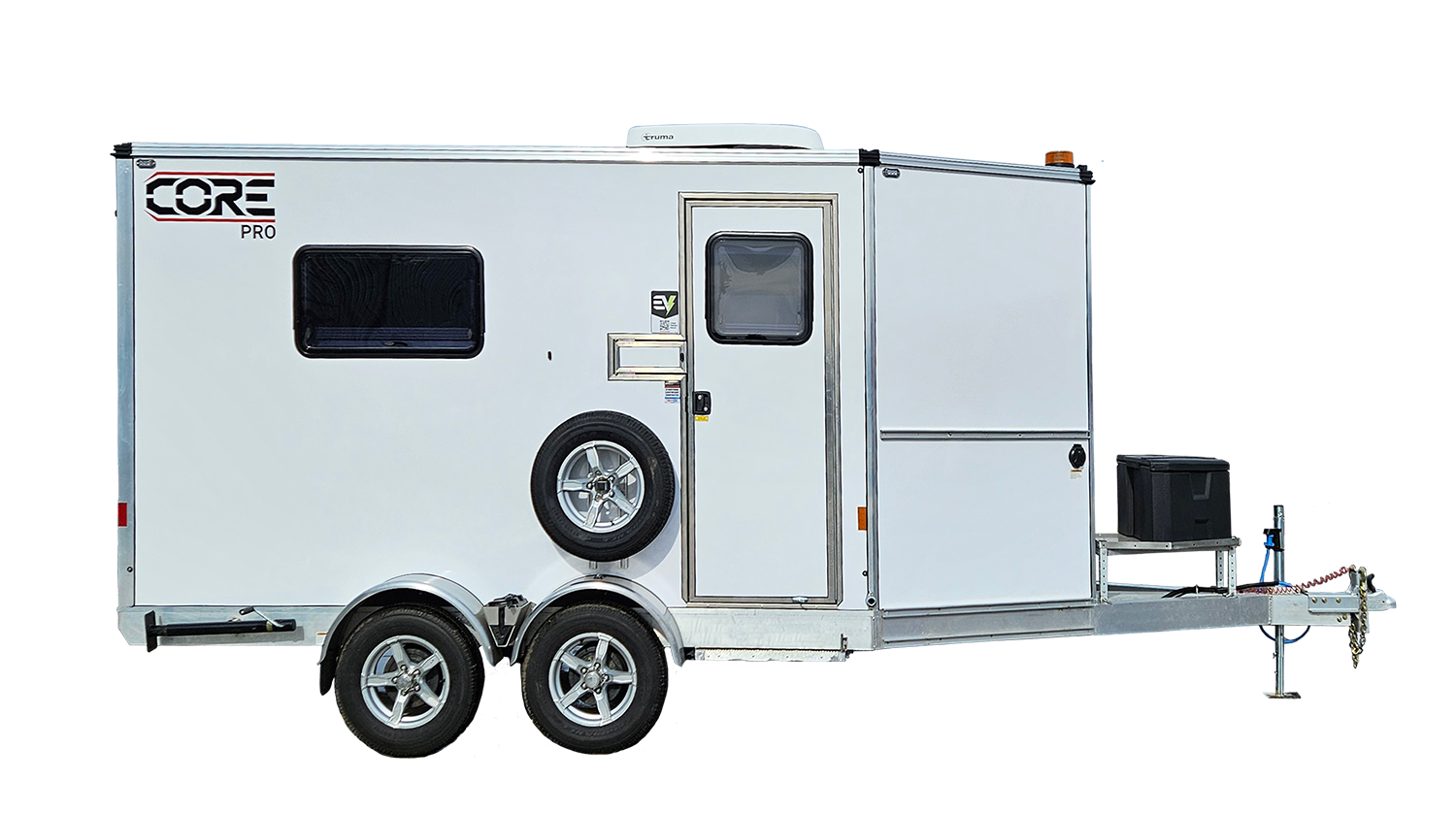

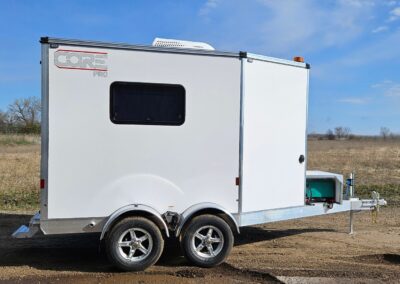

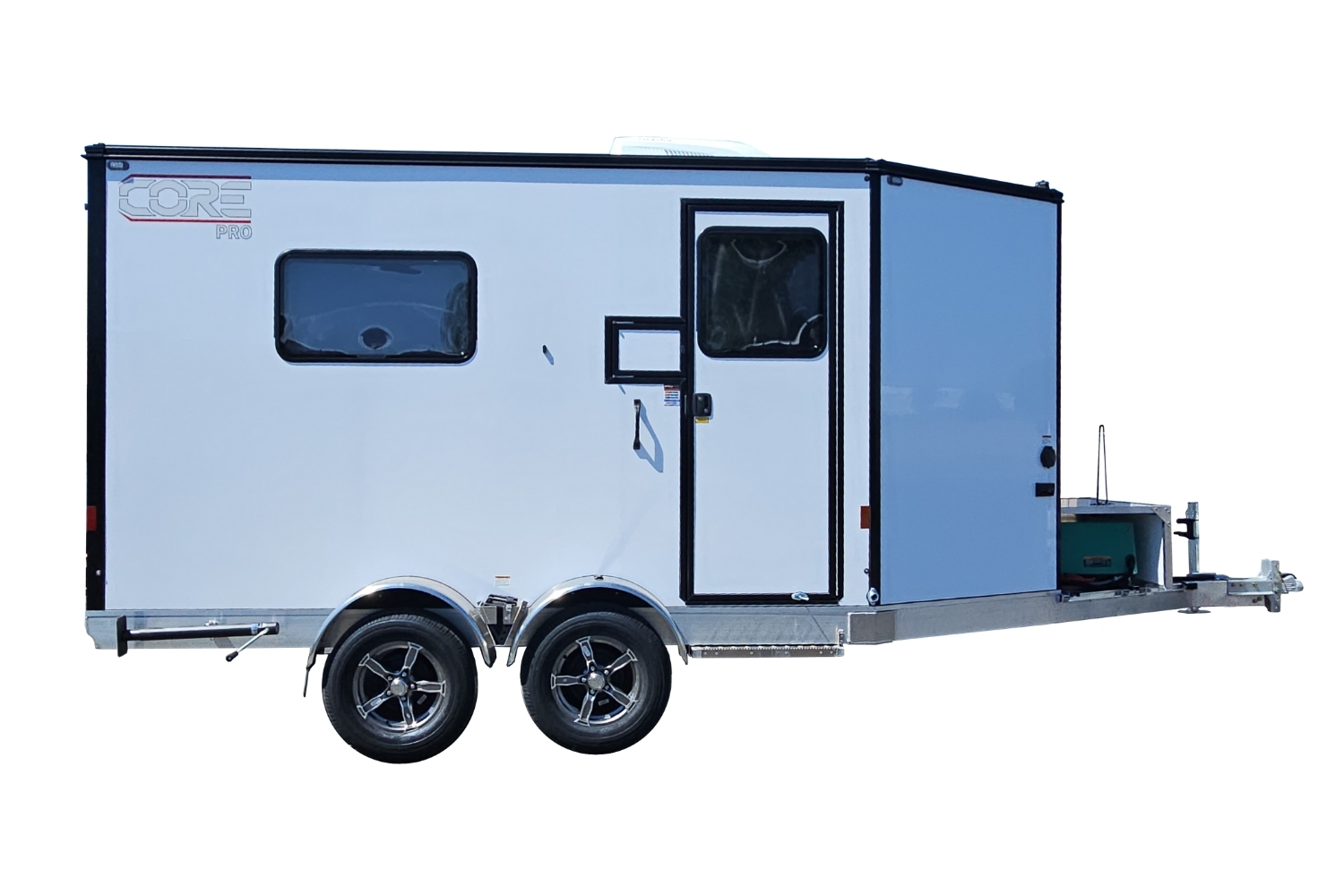

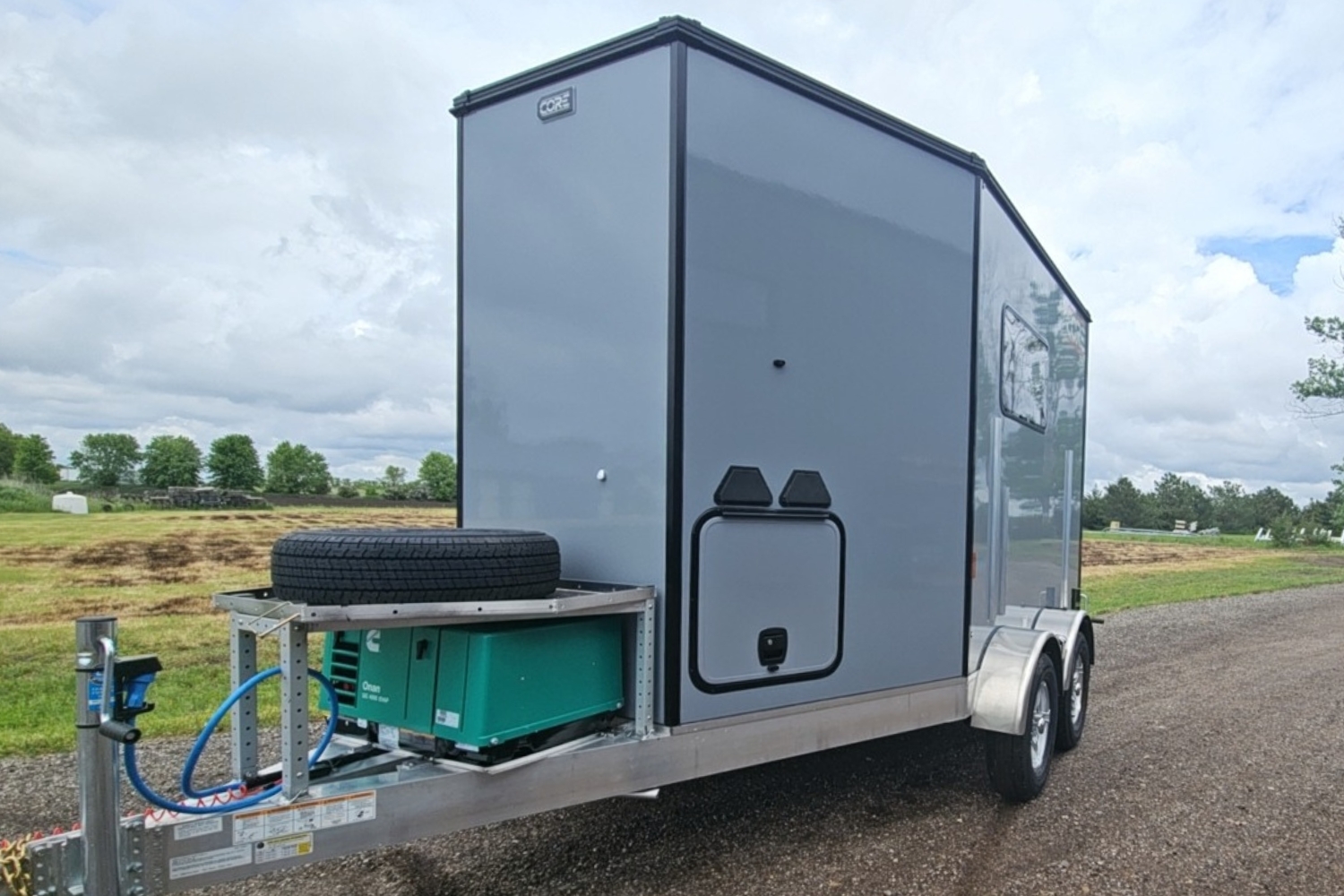

7015FT

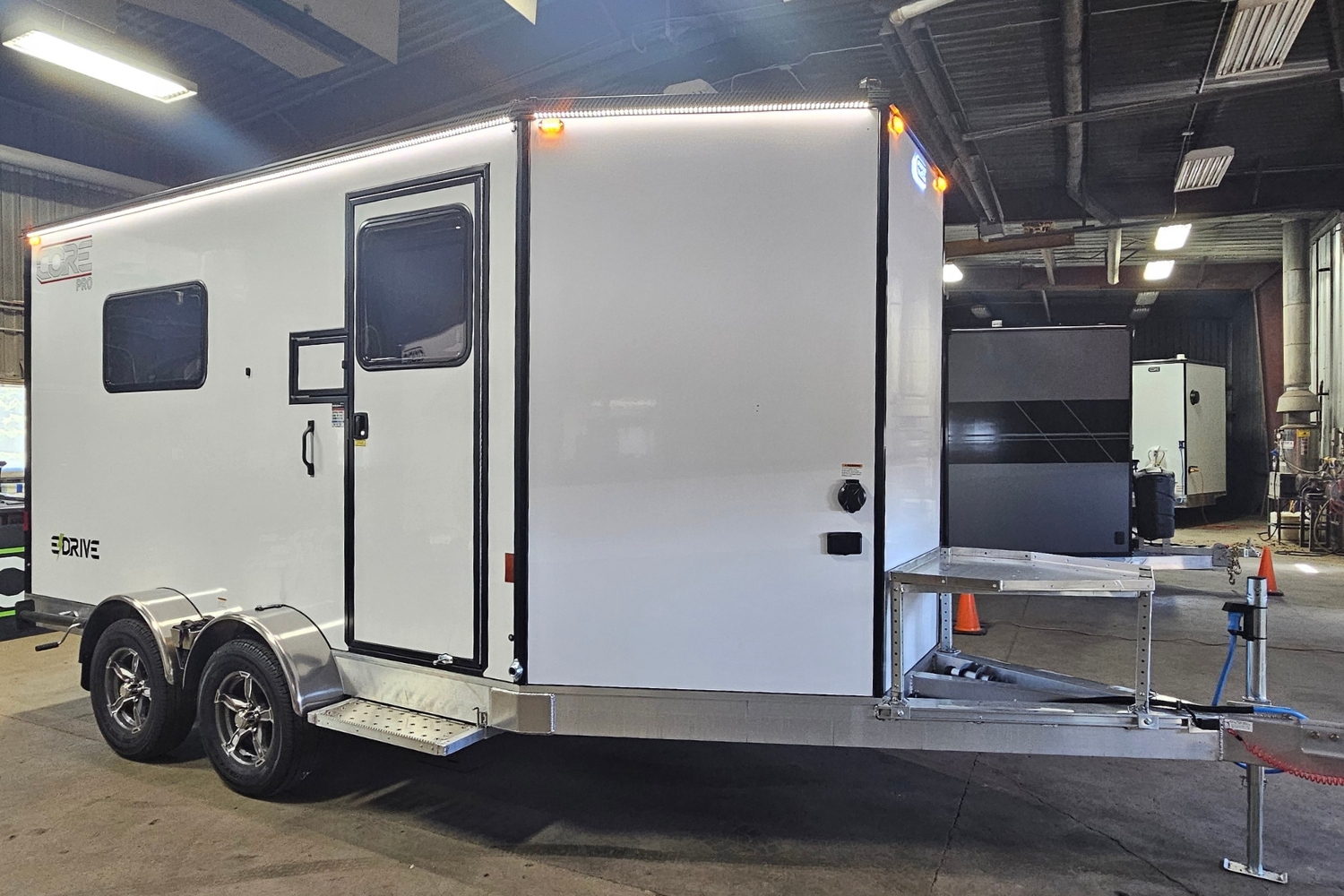

Tandem Axle (shown w/ options)

Overall Length 252″
Overall Height (A/C) 118″
Overall Width 102″
Ground Clearance 16″
Interior Height 80.5″
Interior Width 80.25″
Interior Length 187.125″
Base Weight 2,565 lbs
GVWR 7,000 lbs

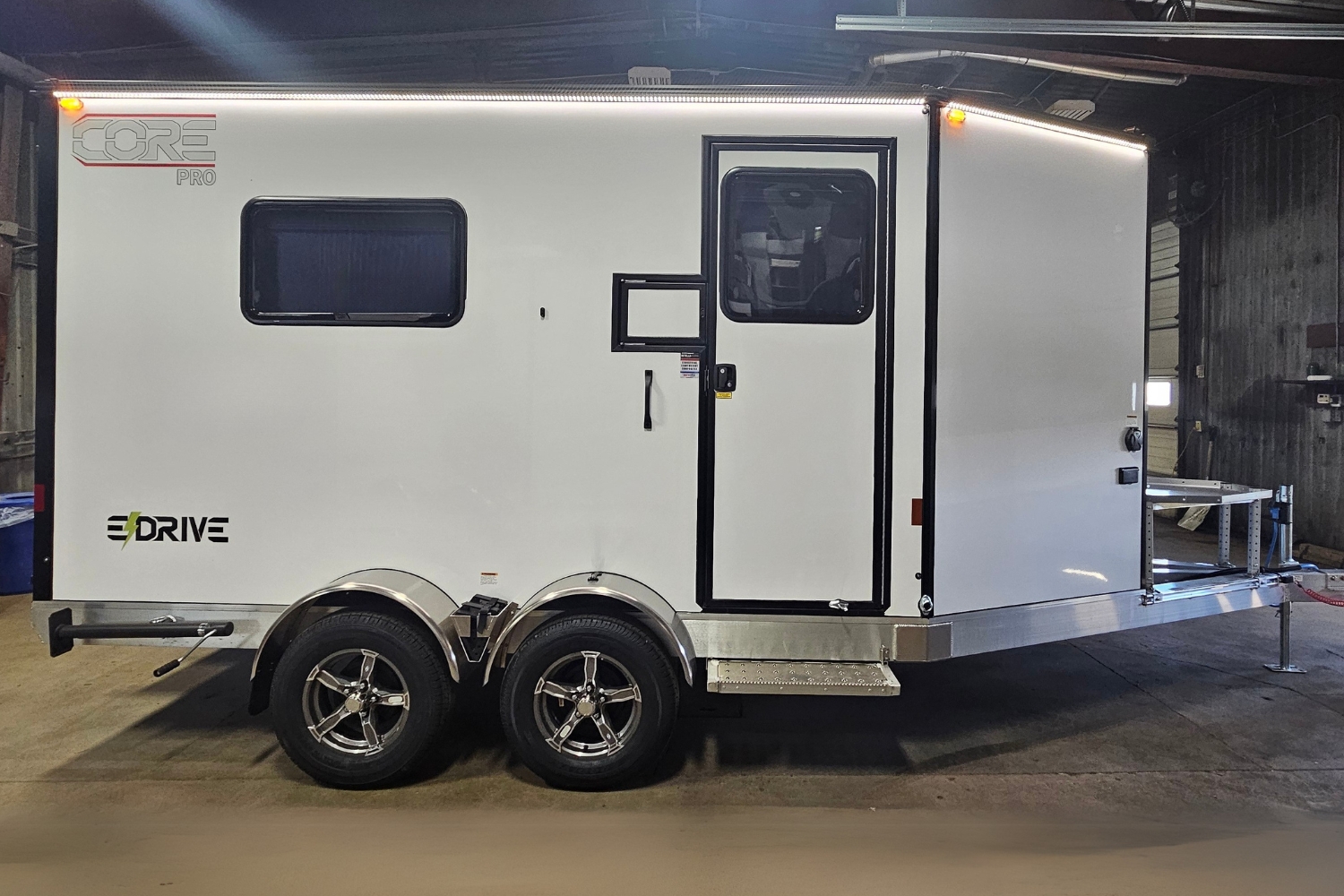

E-DRIVE

Up to 25.5kWh Lithium Battery  |  Up to 1140W Solar Panels  |  9kW Boost & 4kW Constant

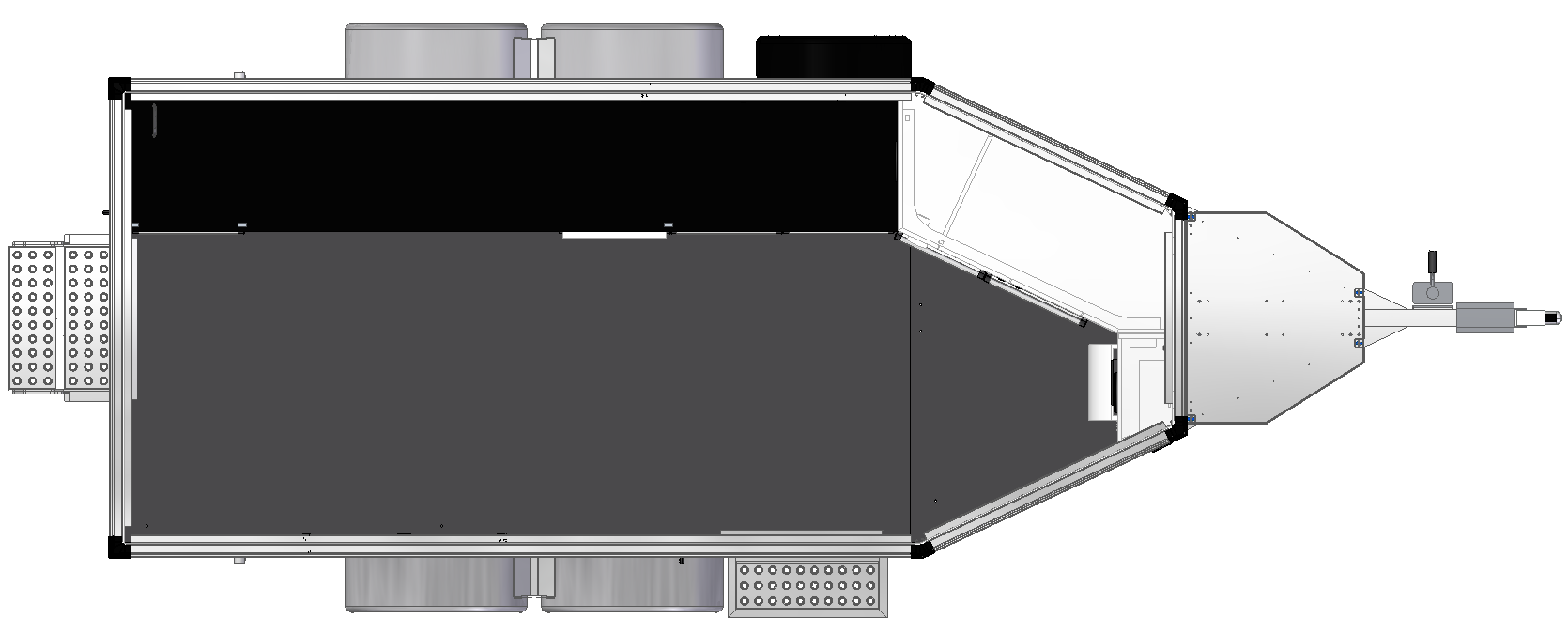

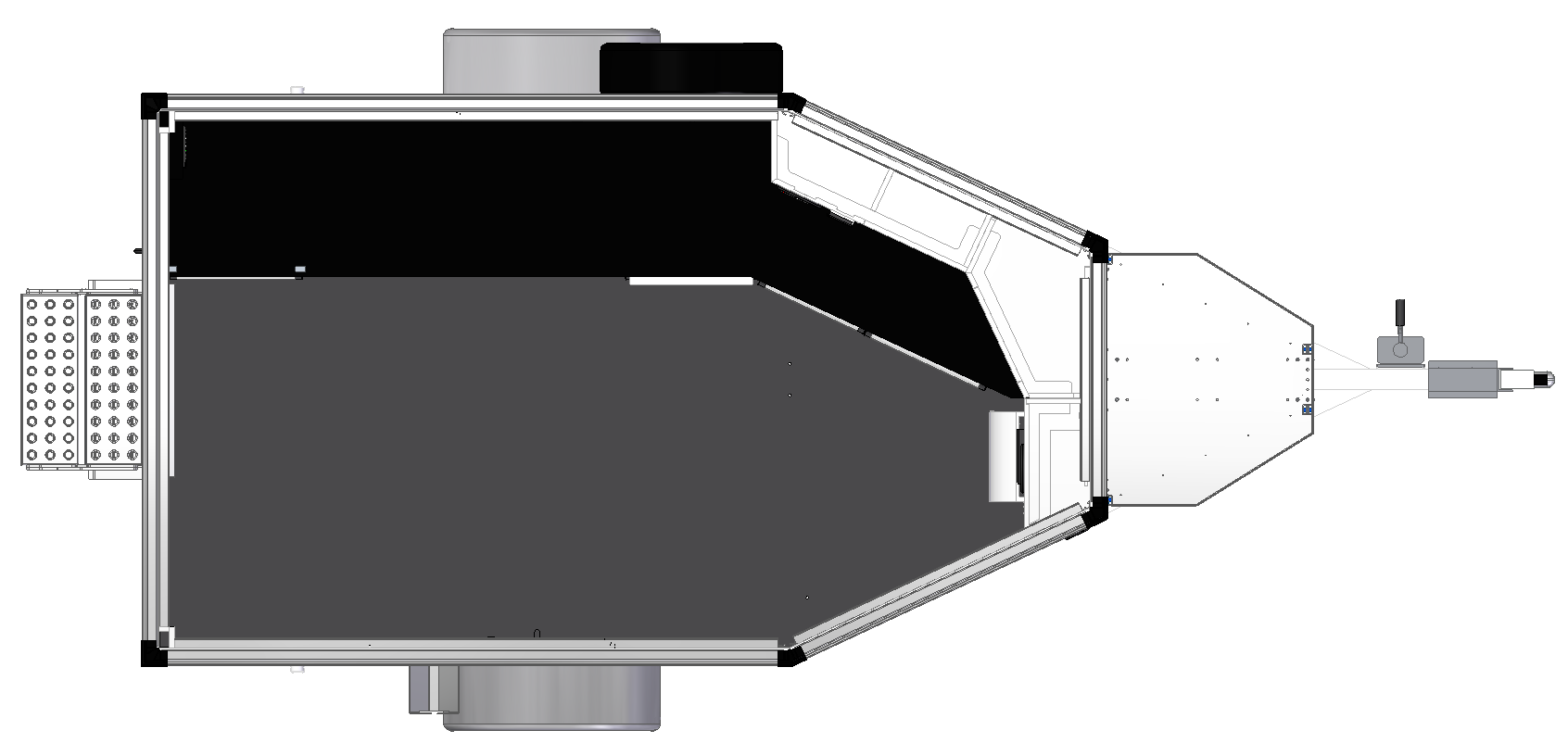

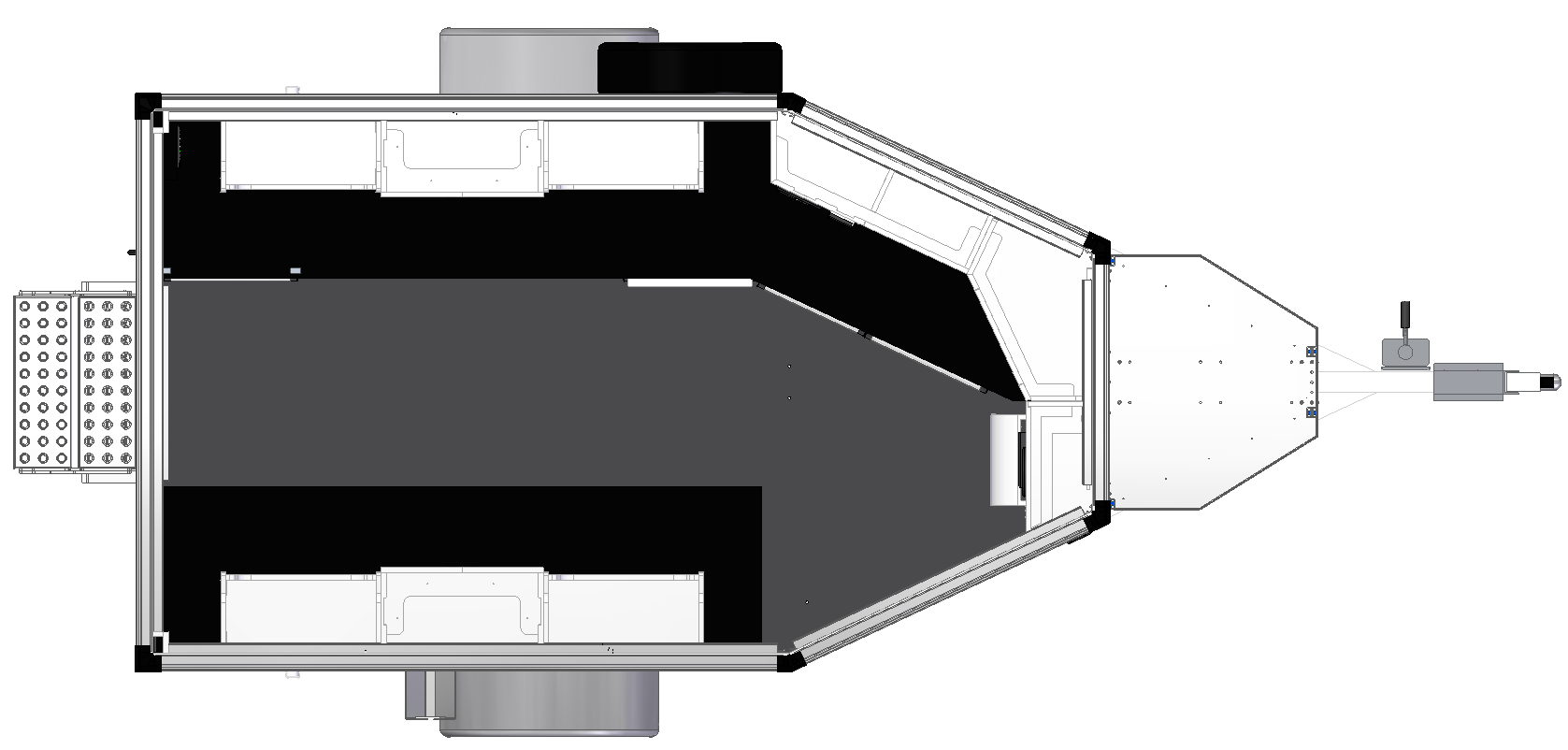

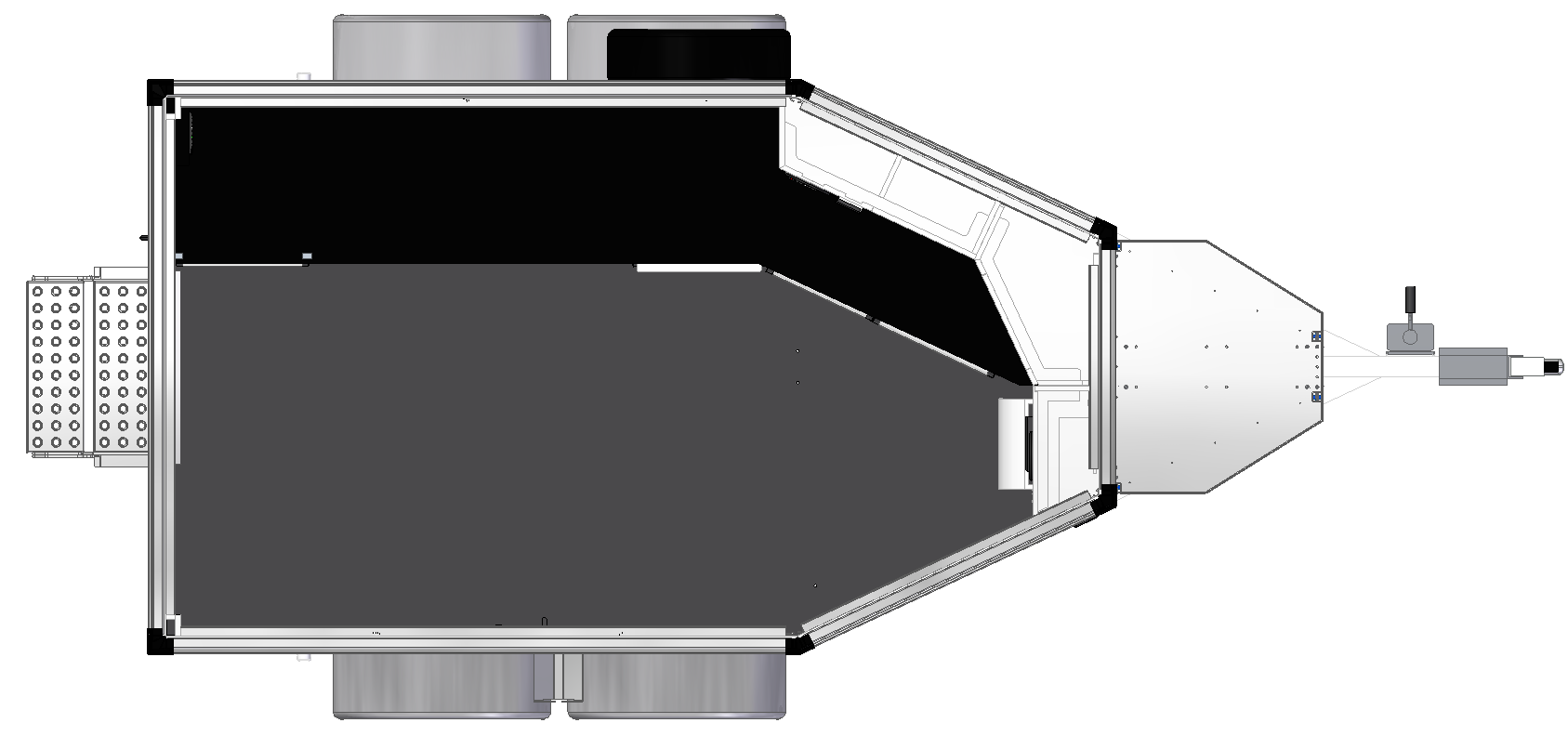

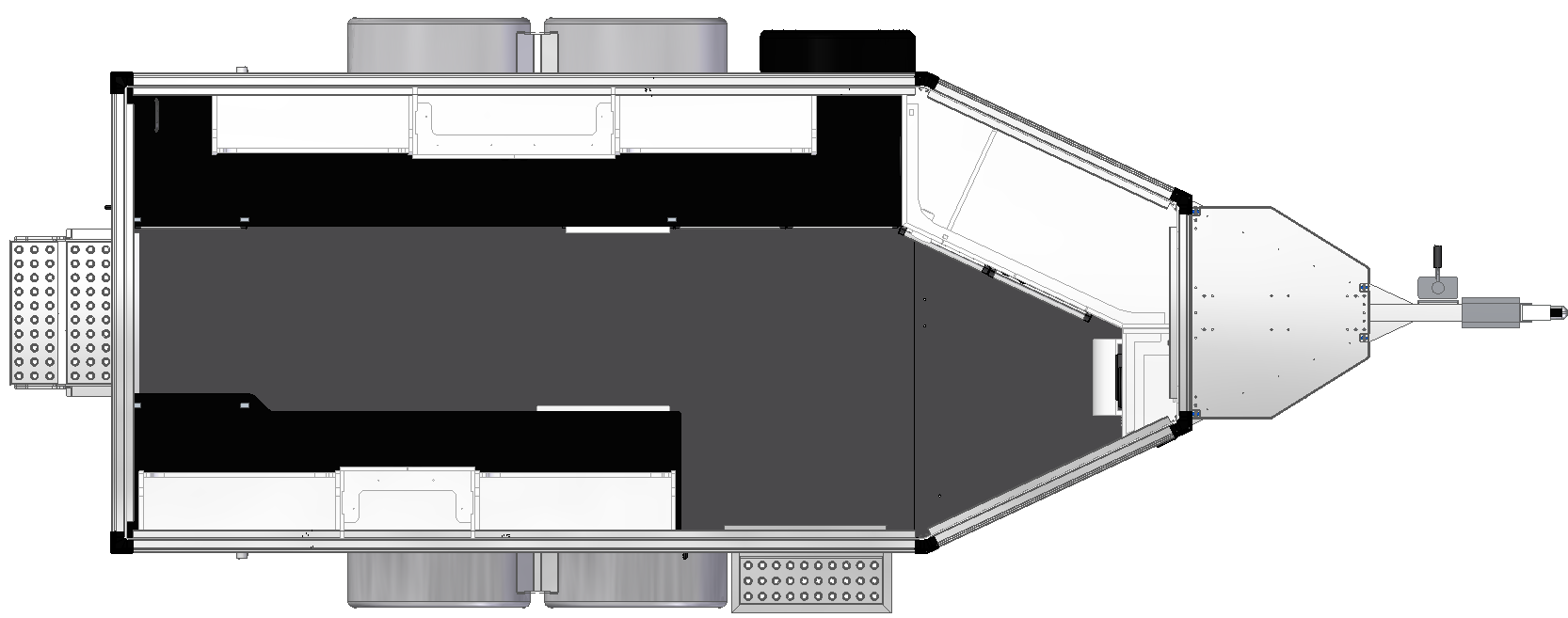

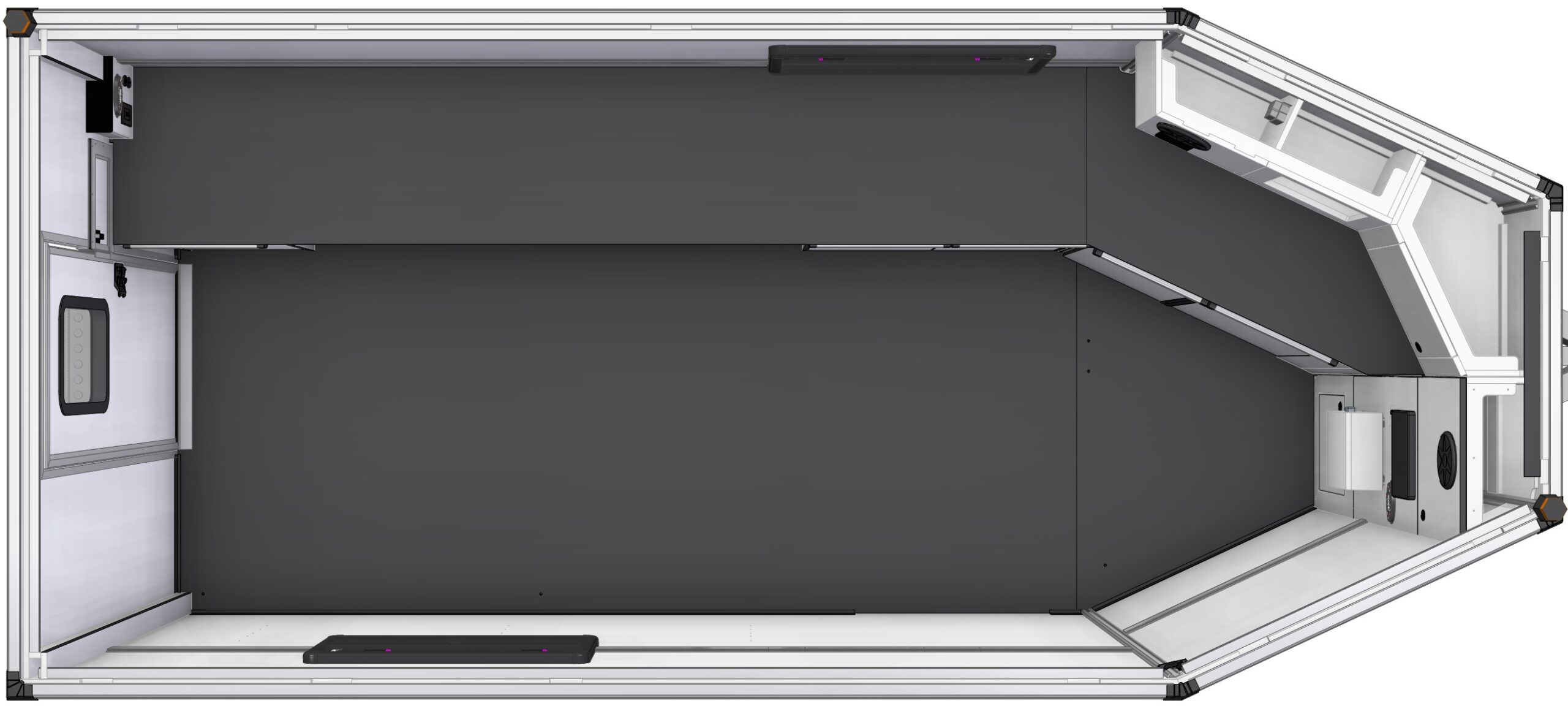

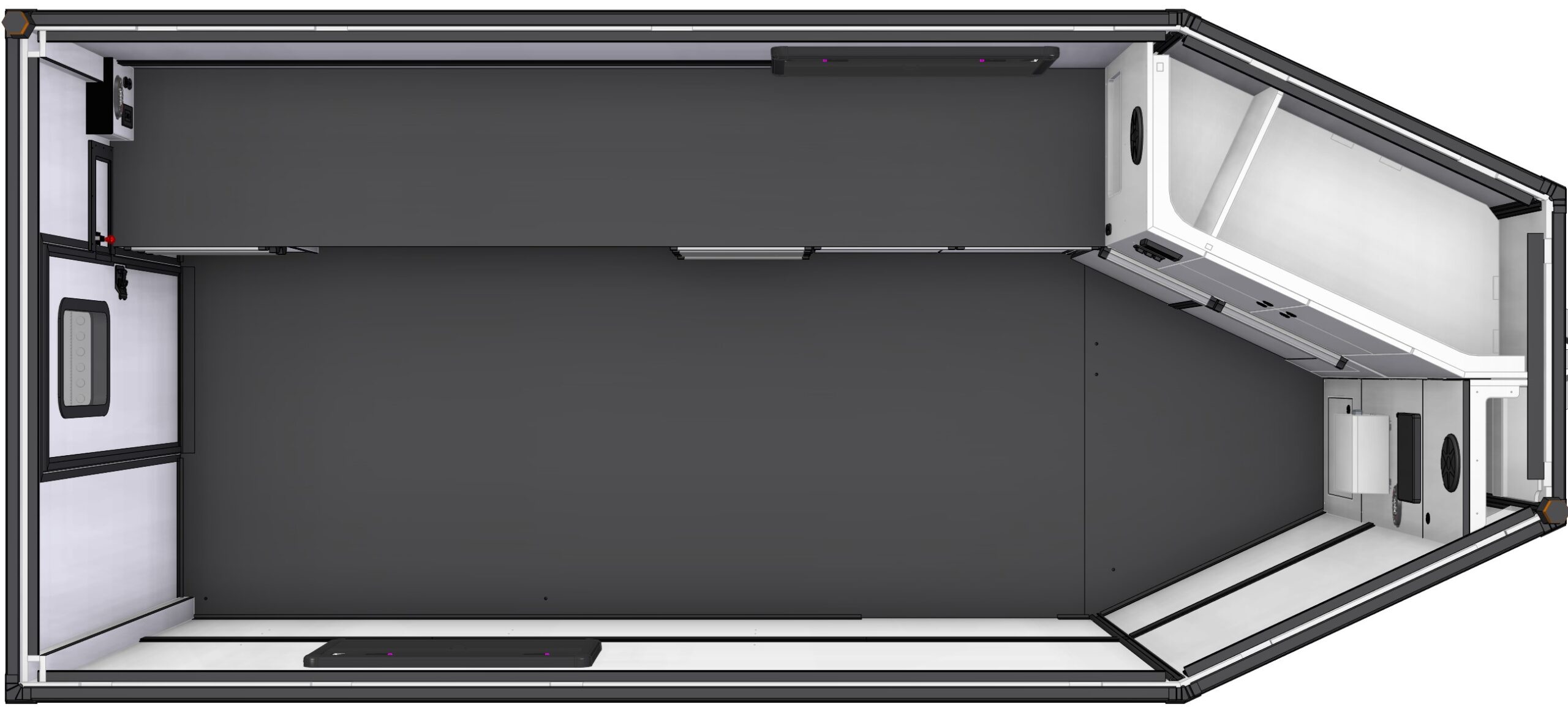

Example Floor Plans

Standard

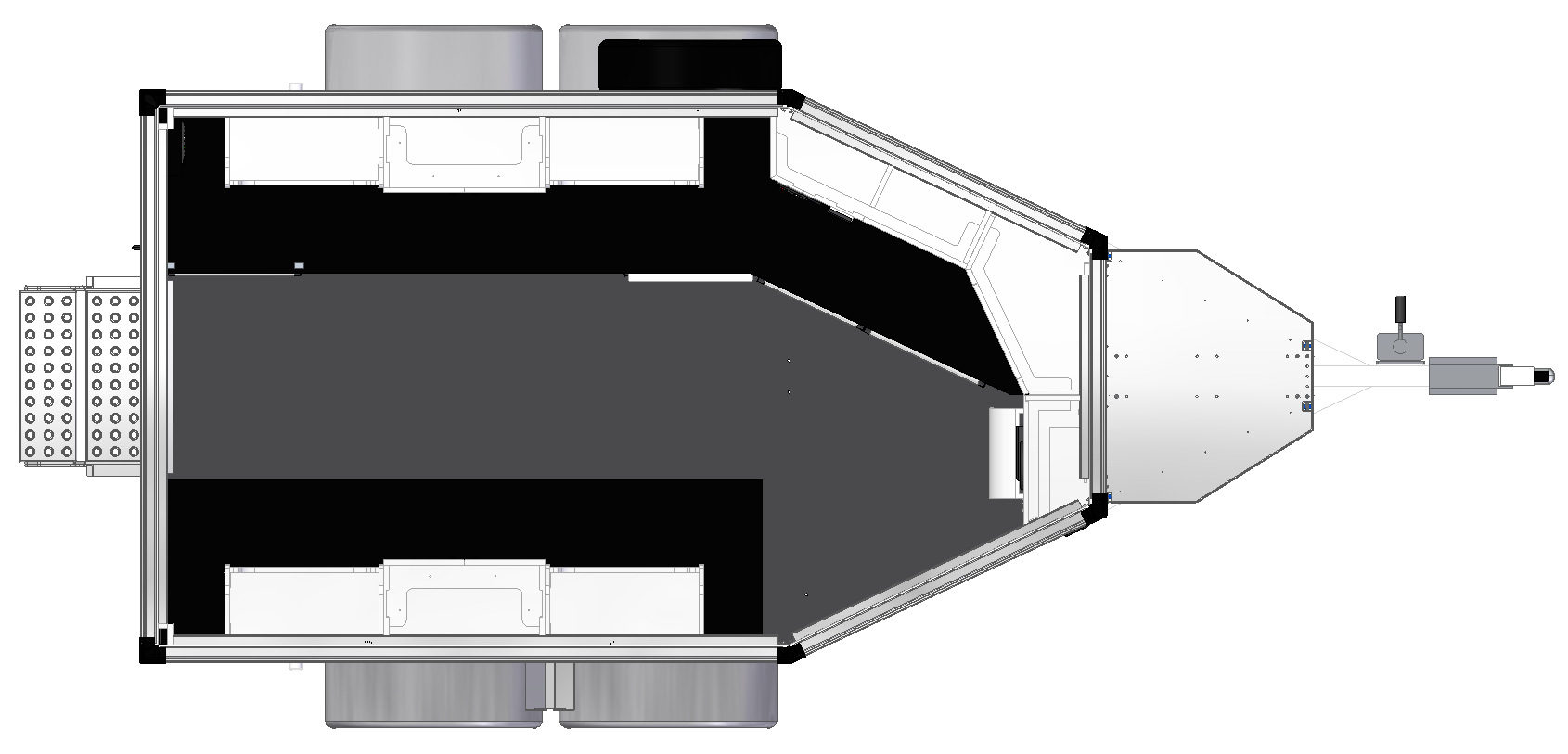

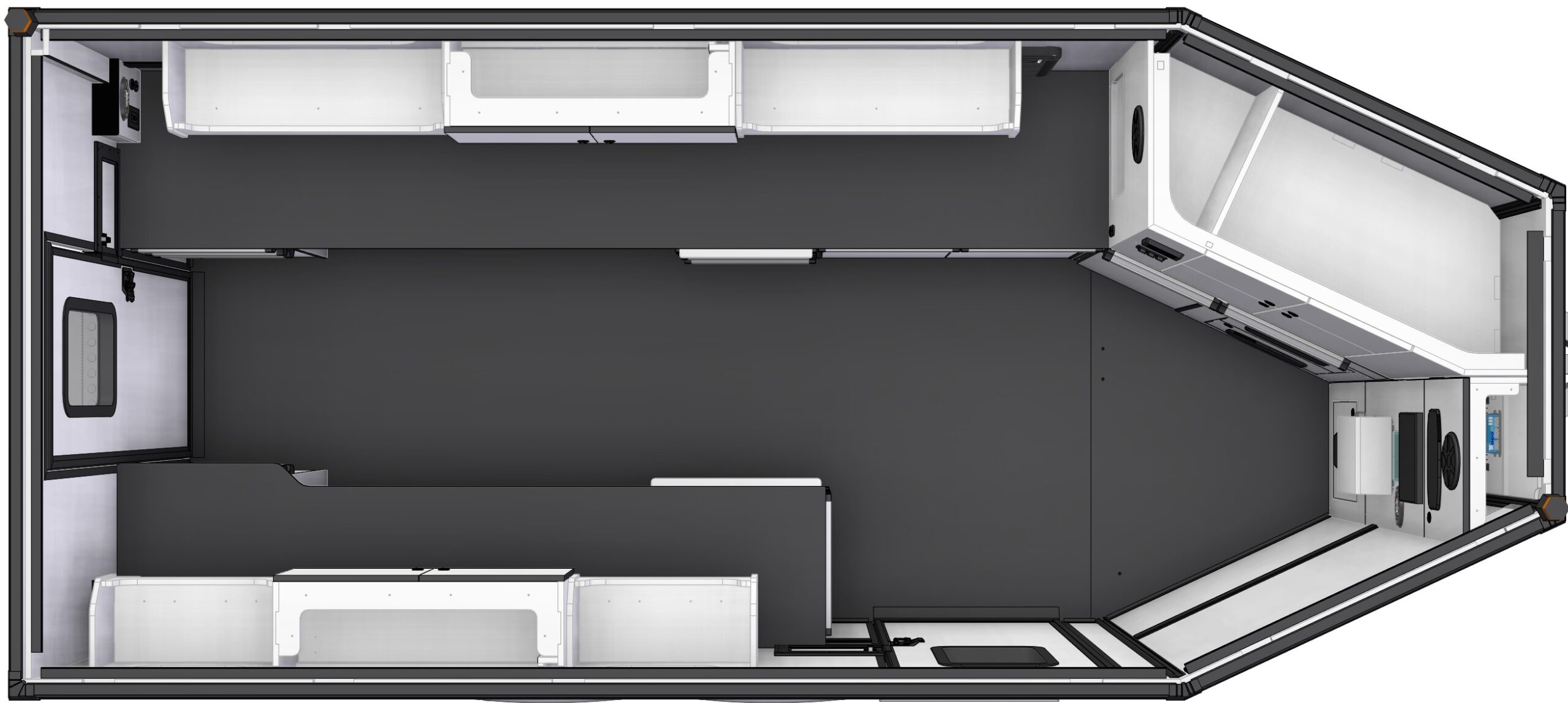

Full Featured

A compact and lightweight core pro fiber splicing trailer designed for efficient and reliable fiber splicing operations.

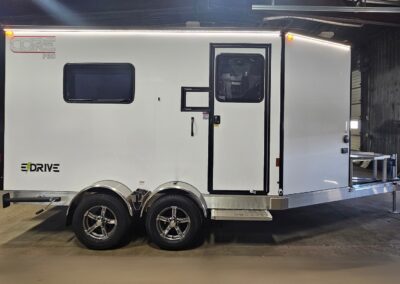

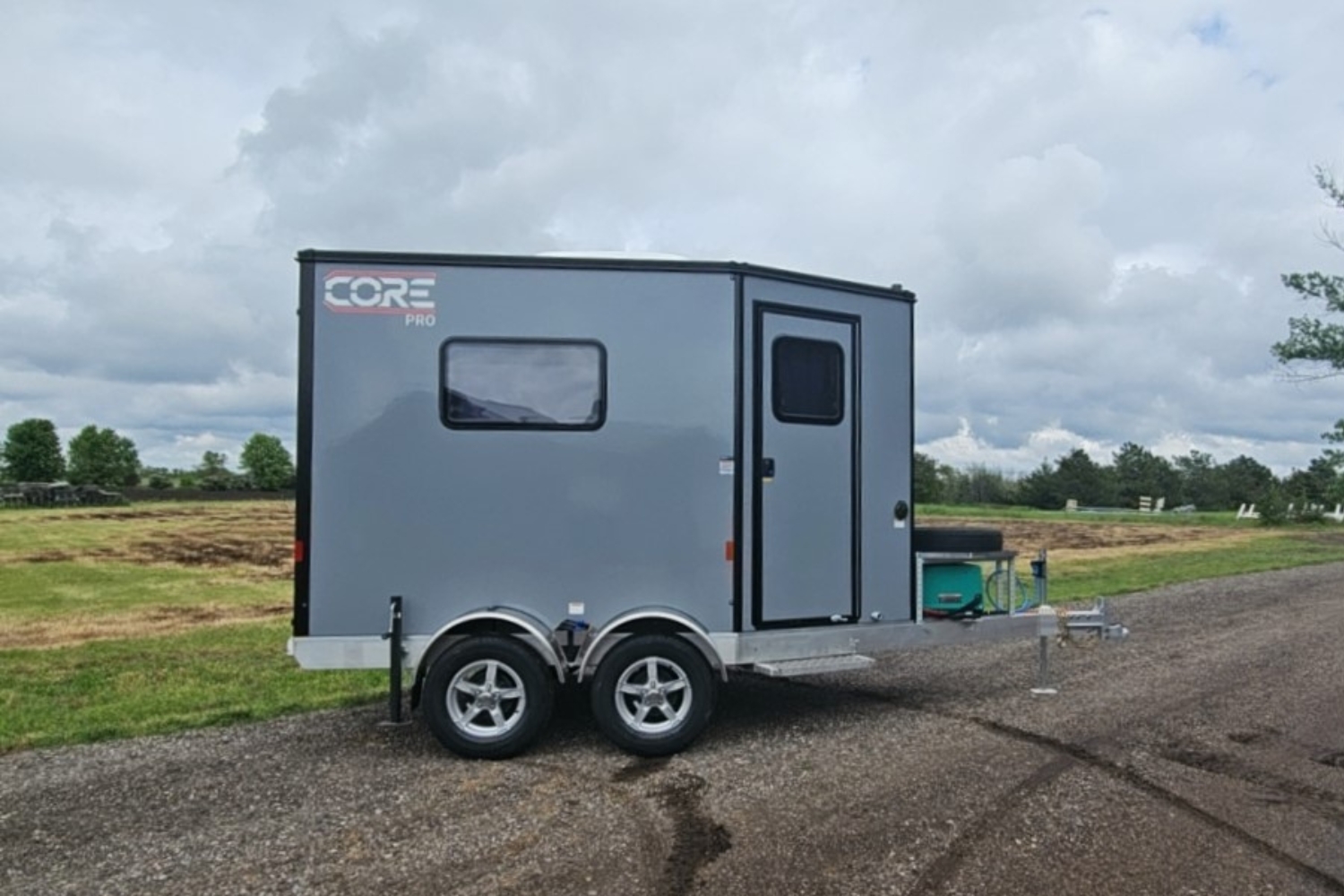

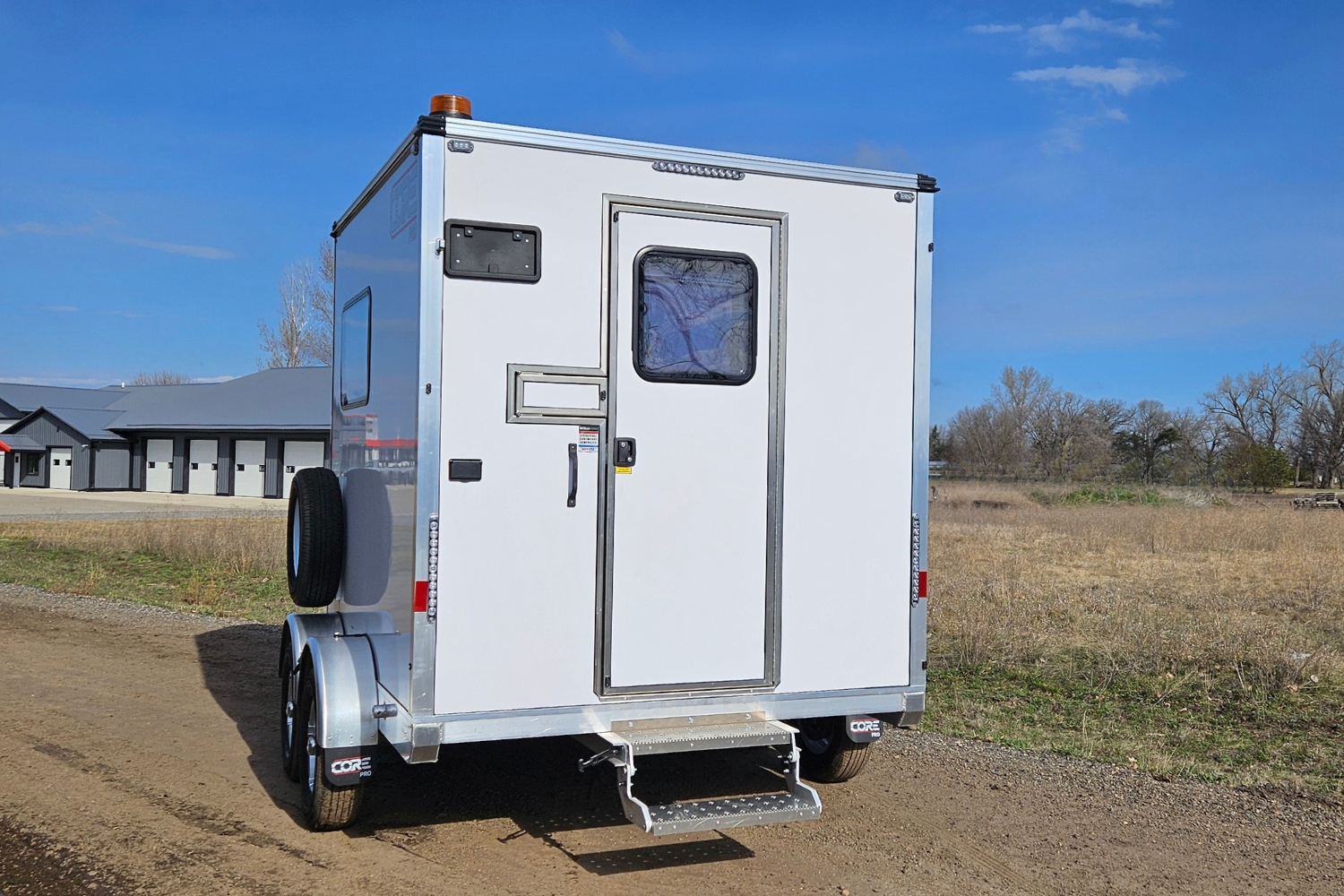

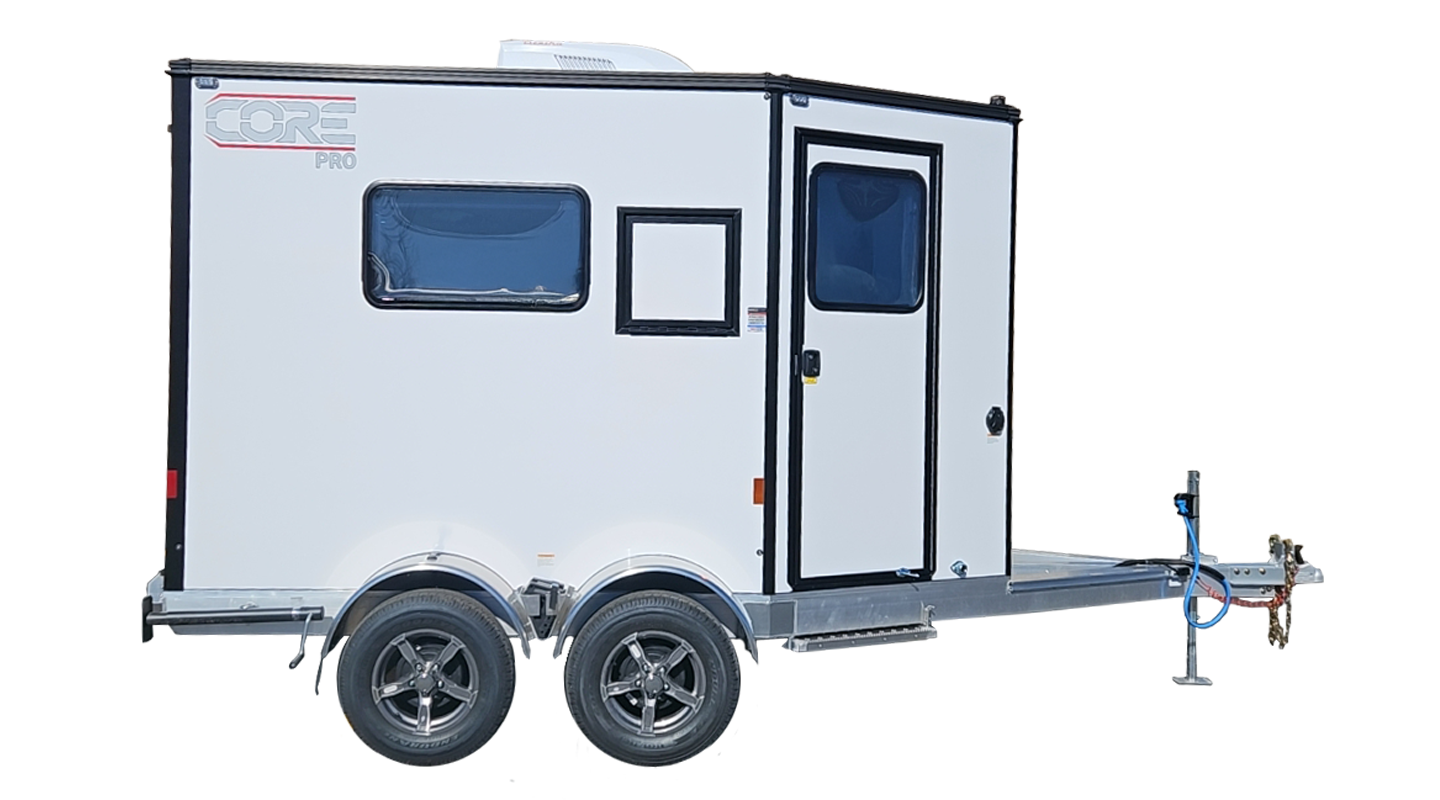

7012FT

Tandem Axle (shown w/ options)

Overall Length 204″
Overall Height (A/C) 118″
Overall Width 102″
Ground Clearance 16″
Interior Height 80.5″
Interior Width 80.25″
Interior Length 139.125″
Base Weight 2,410 lbs
GVWR 7,000 lbs

E-DRIVE

Up to 25.5kWh Lithium Battery  |  Up to 1140W Solar Panels  |  9kW Boost & 4kW Constant

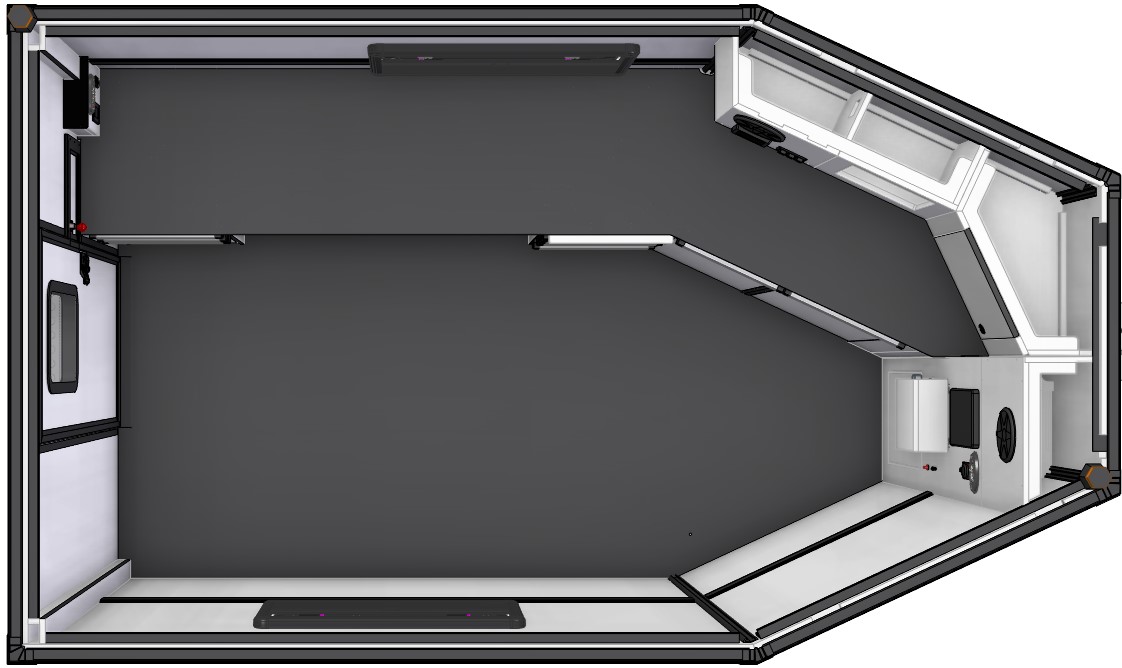

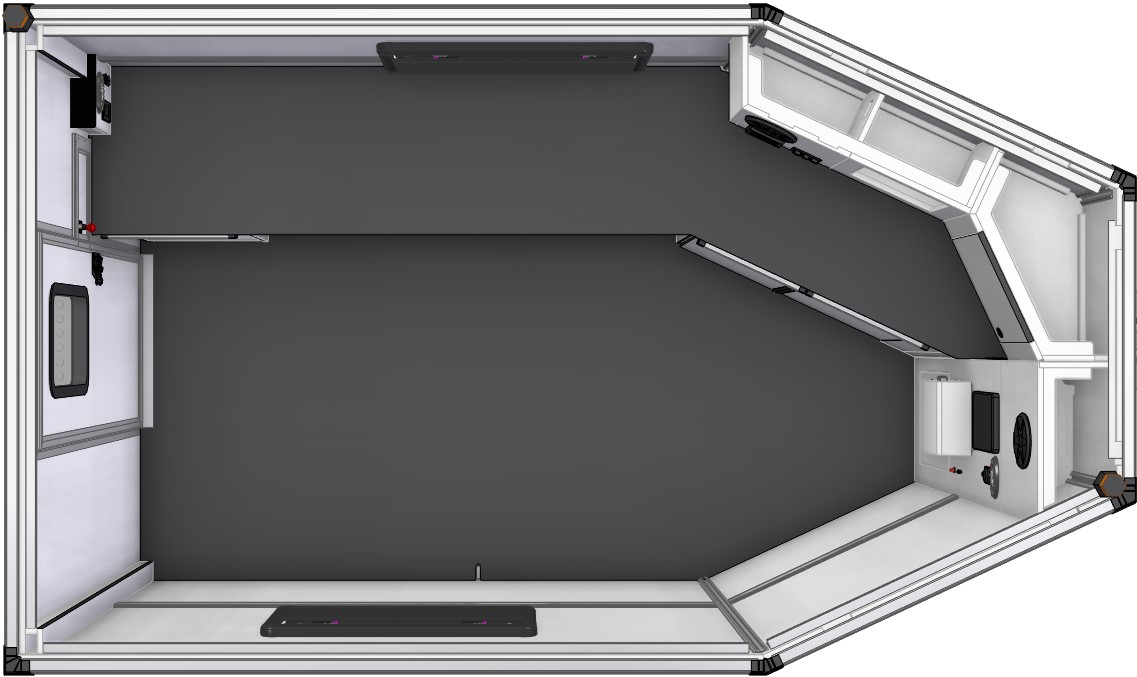

Example Floor Plans

Standard

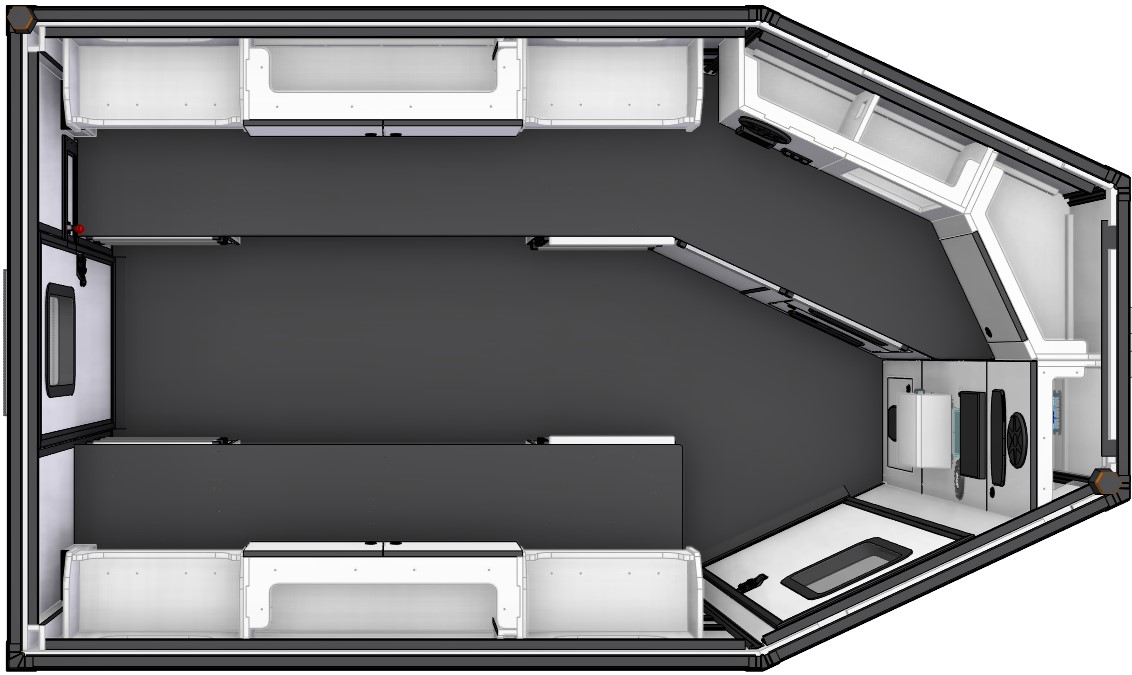

Full Featured

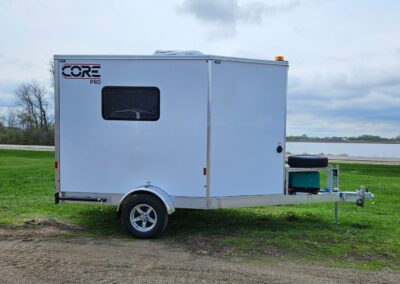

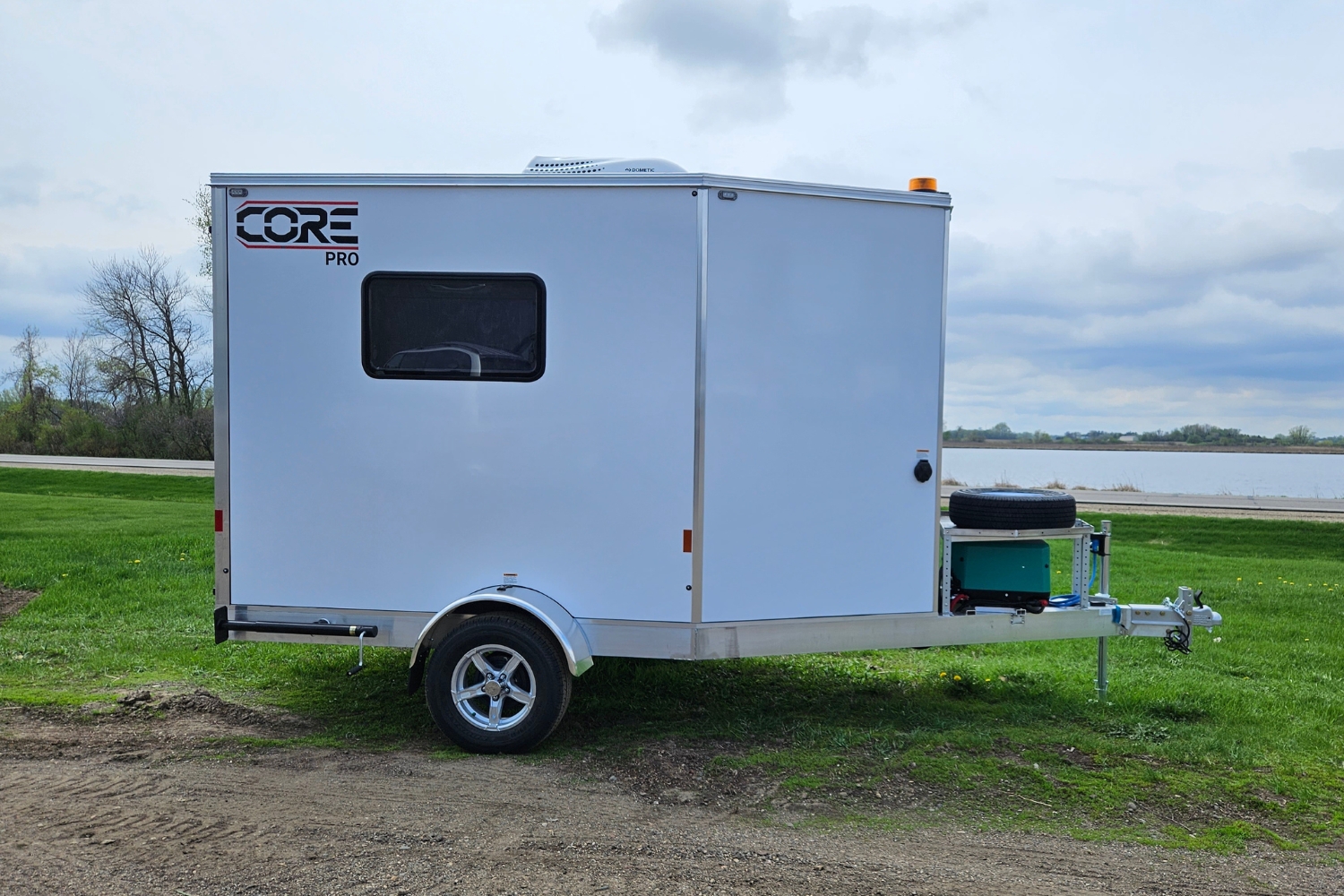

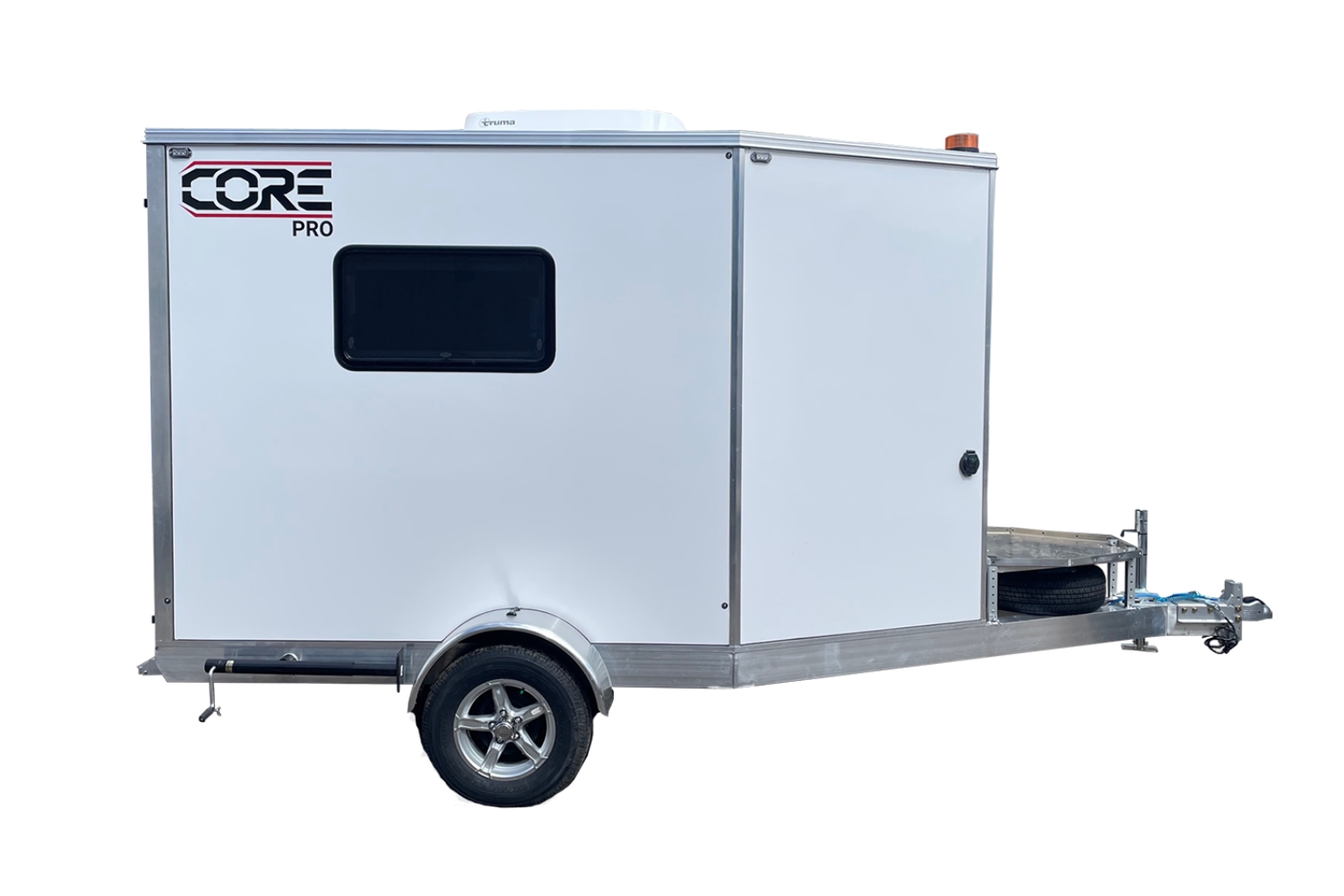

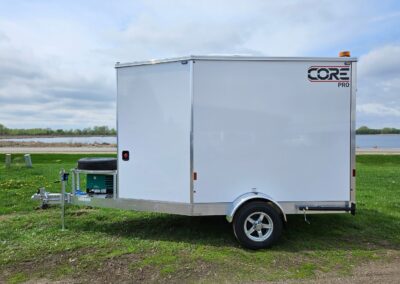

7012FS

Single Axle

Overall Length 204″
Overall Height (A/C) 118″
Overall Width 102″
Ground Clearance 16″
Interior Height 80.5″
Interior Width 80.25″
Interior Length 139.125″
Base Weight 2,200 lbs
GVWR 3,850 lbs

E-DRIVE

Up to 25.5kWh Lithium Battery  |  Up to 660W Solar Panels  |  9kW Boost & 4kW Constant

Example Floor Plans

Standard

Full Featured

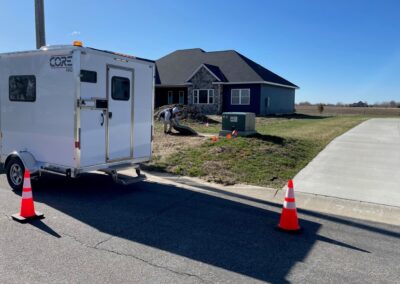

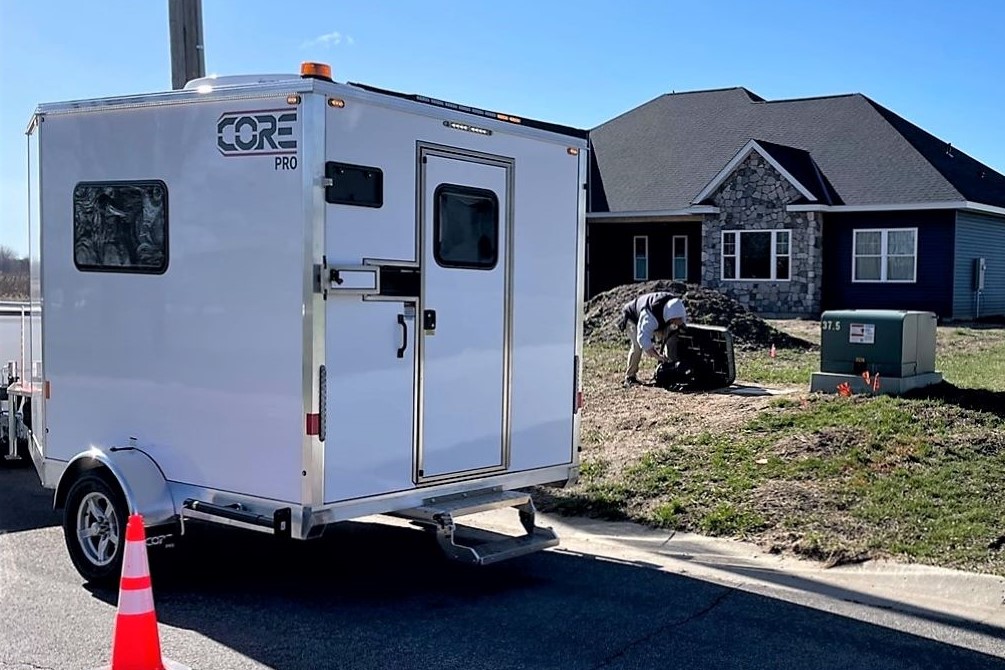

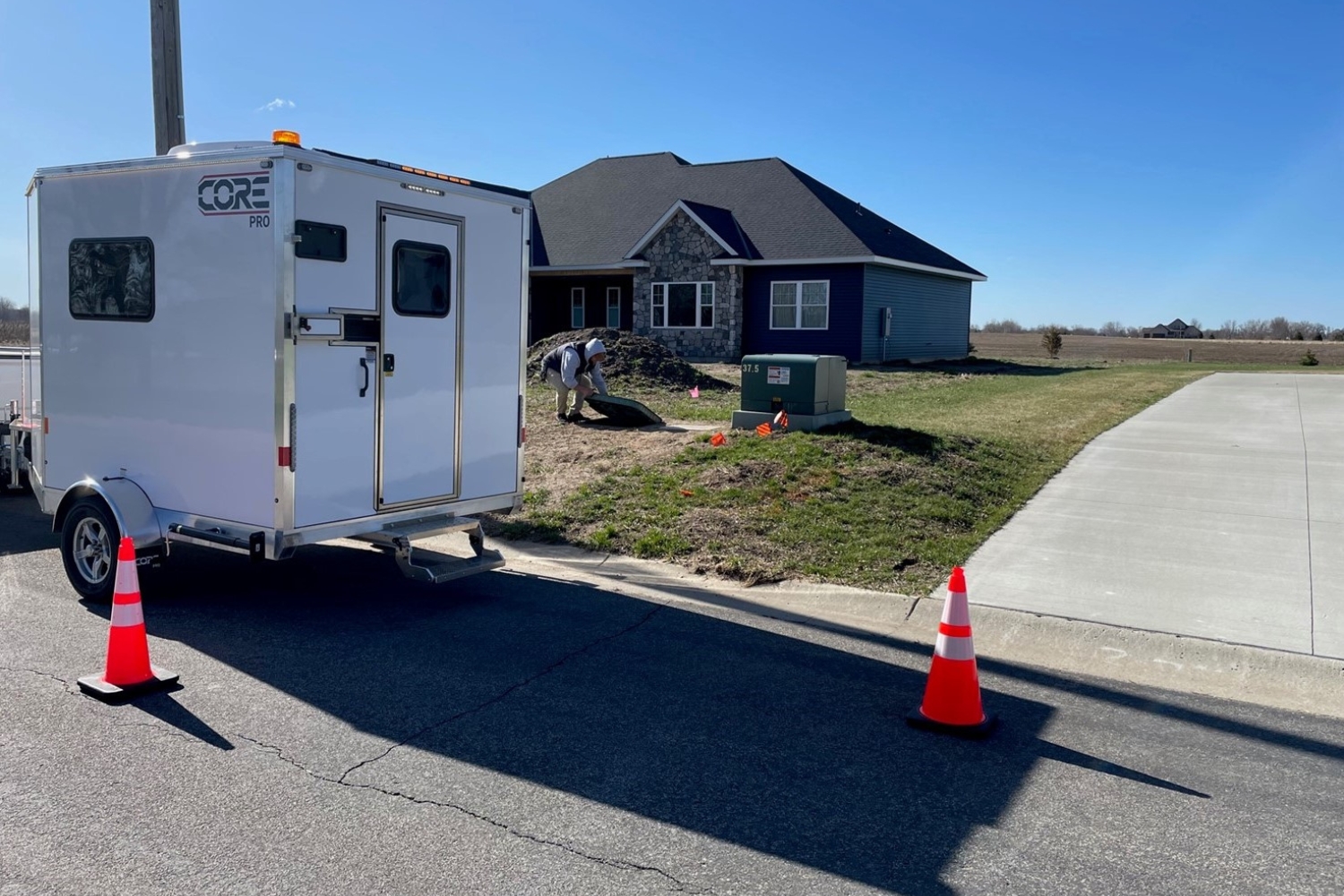

Exterior action shot of a fiber splicer working in front of a newer built home, an orange cone is out in front for safety

STANDARD FEATURES

  • INTELLI-CORE Structural Composite Floor, Walls, and Roof
  • Fully Insulated R15 Roof, R11 Floor, and R9 Walls
  • 30 Amp Generator/Shore Power Plug
  • High Efficiency, Low Profile Roof Mount A/C Unit

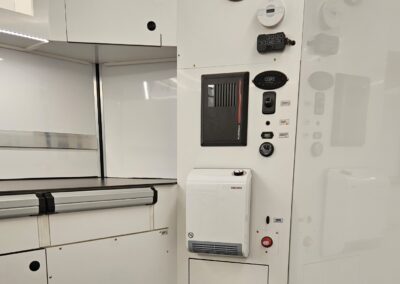

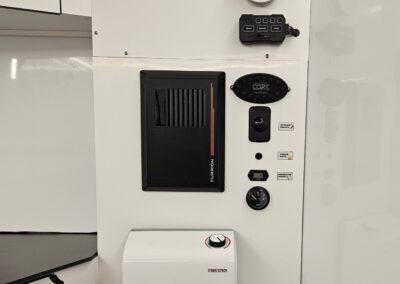

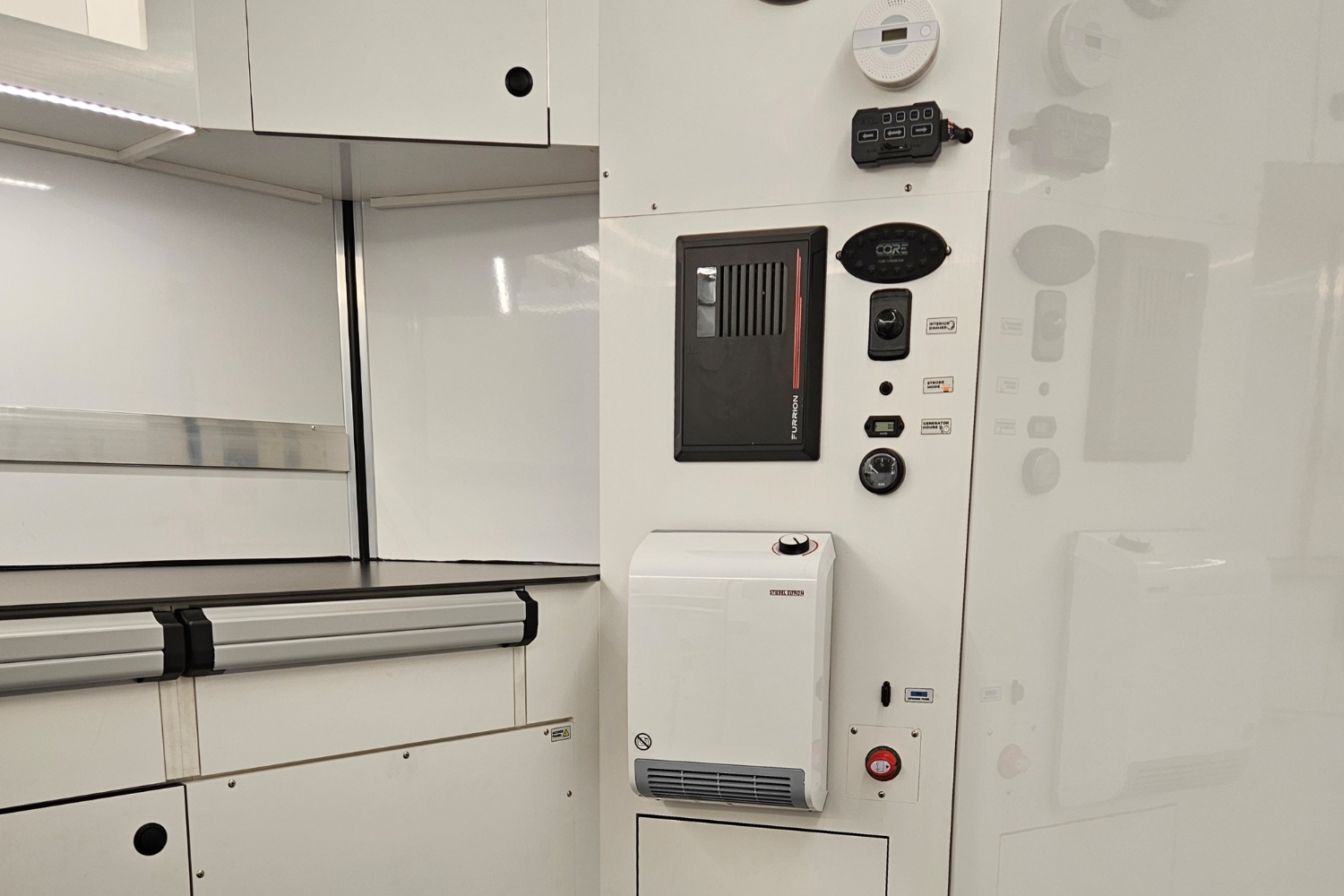

  • 1500W Elec Wall Heater and 500W Toe Kick Heater

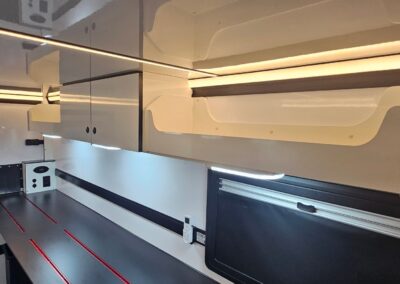

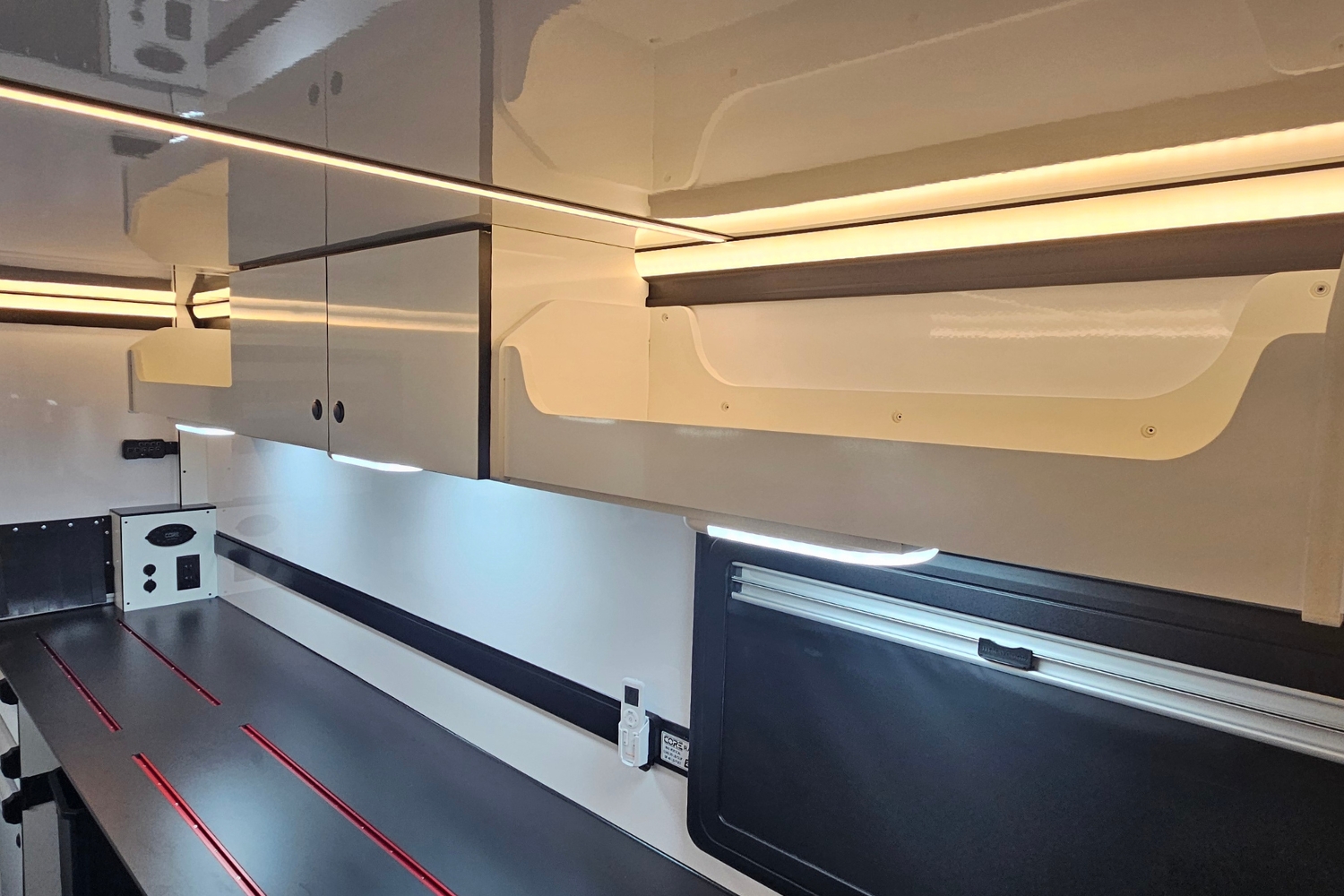

  • Full Perimeter LED Halo, Rear & Front Work Lights
  • LED Roof Mounted Beacon Lights

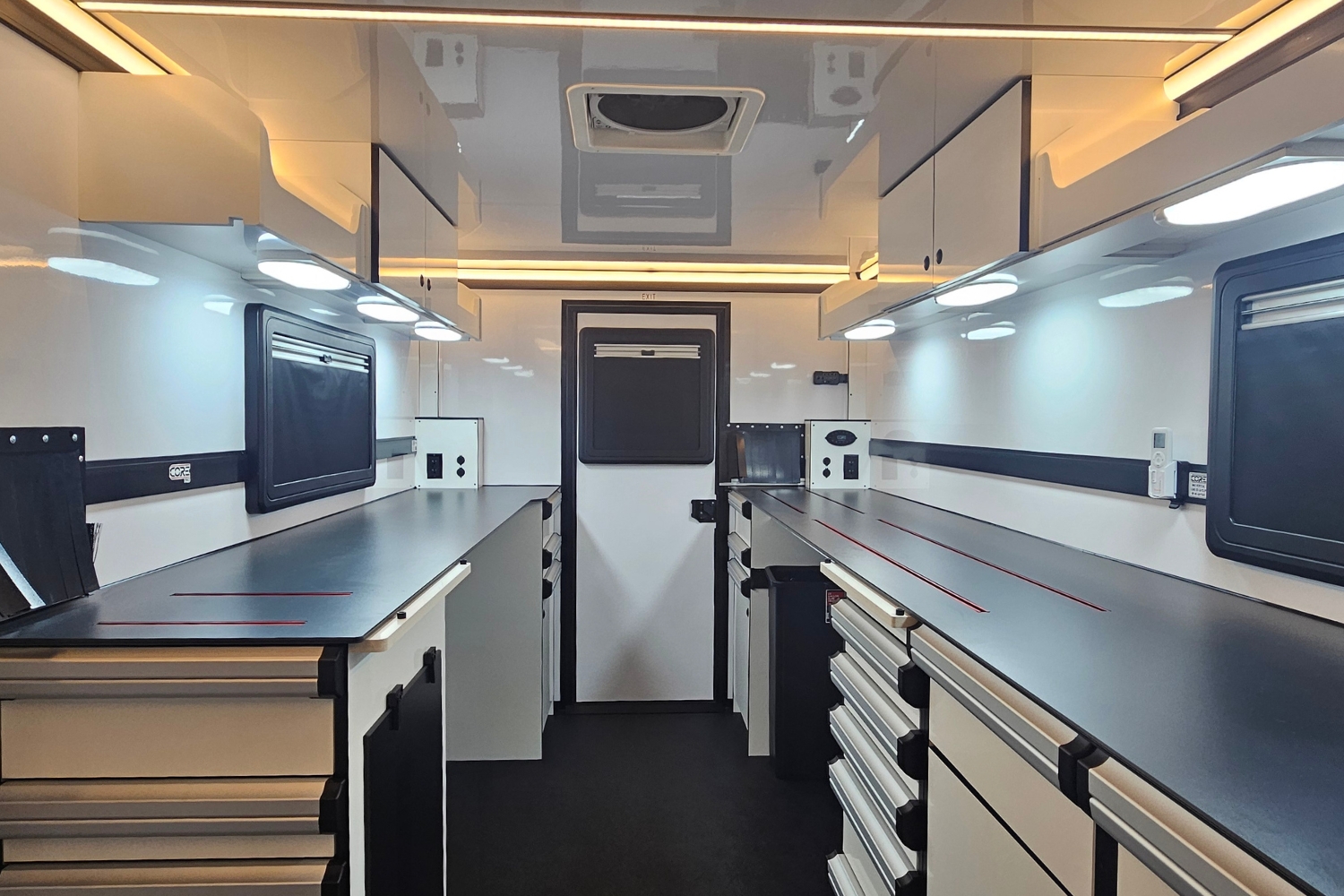

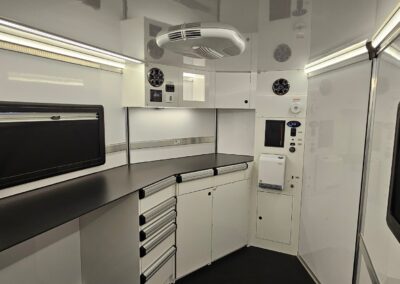

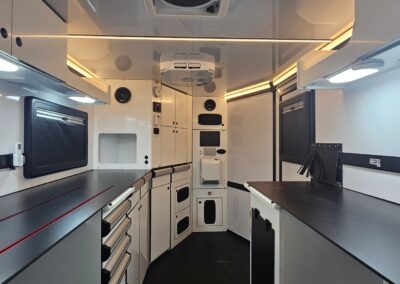

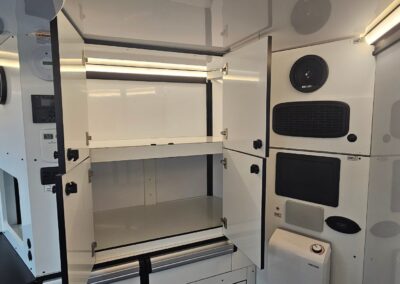

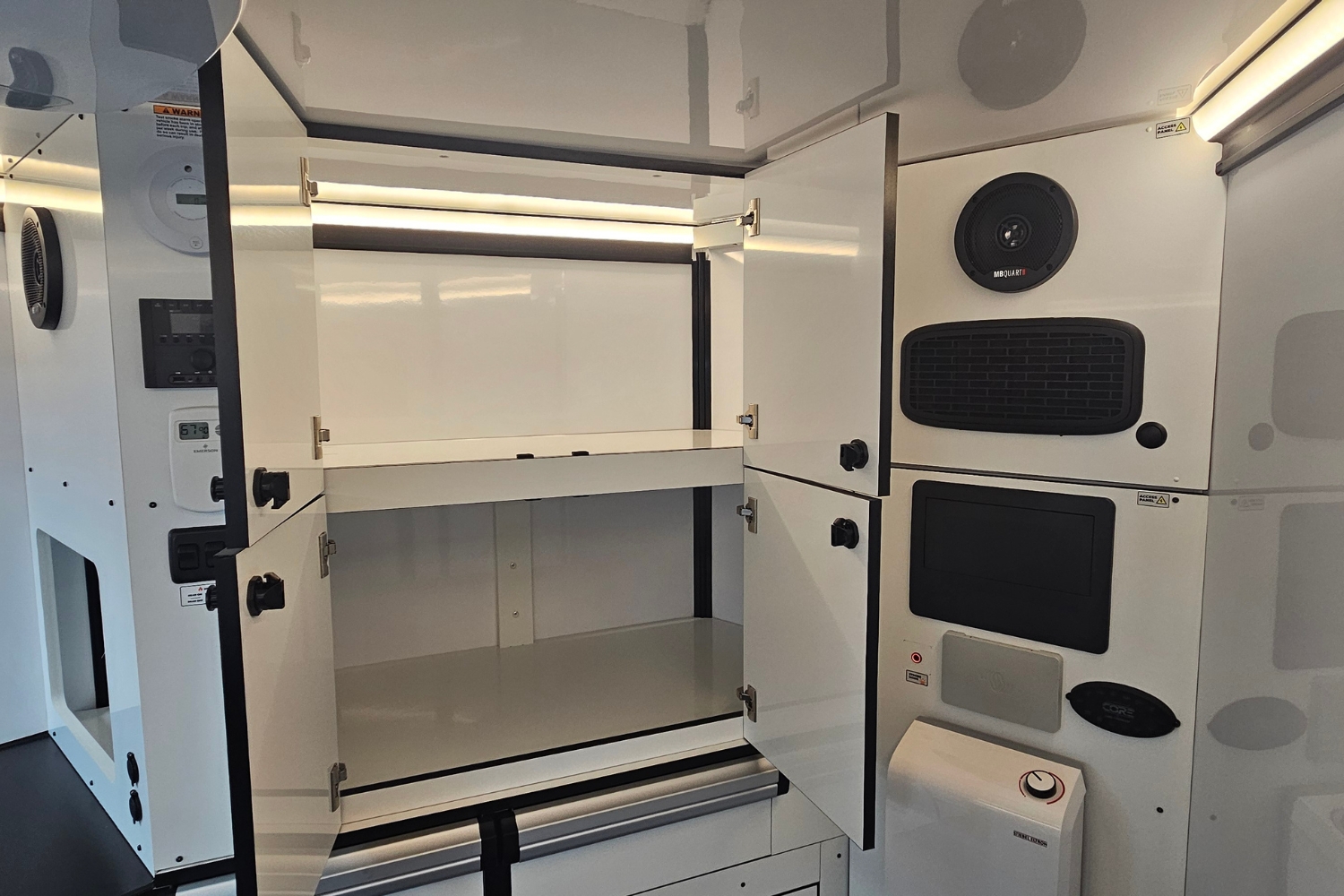

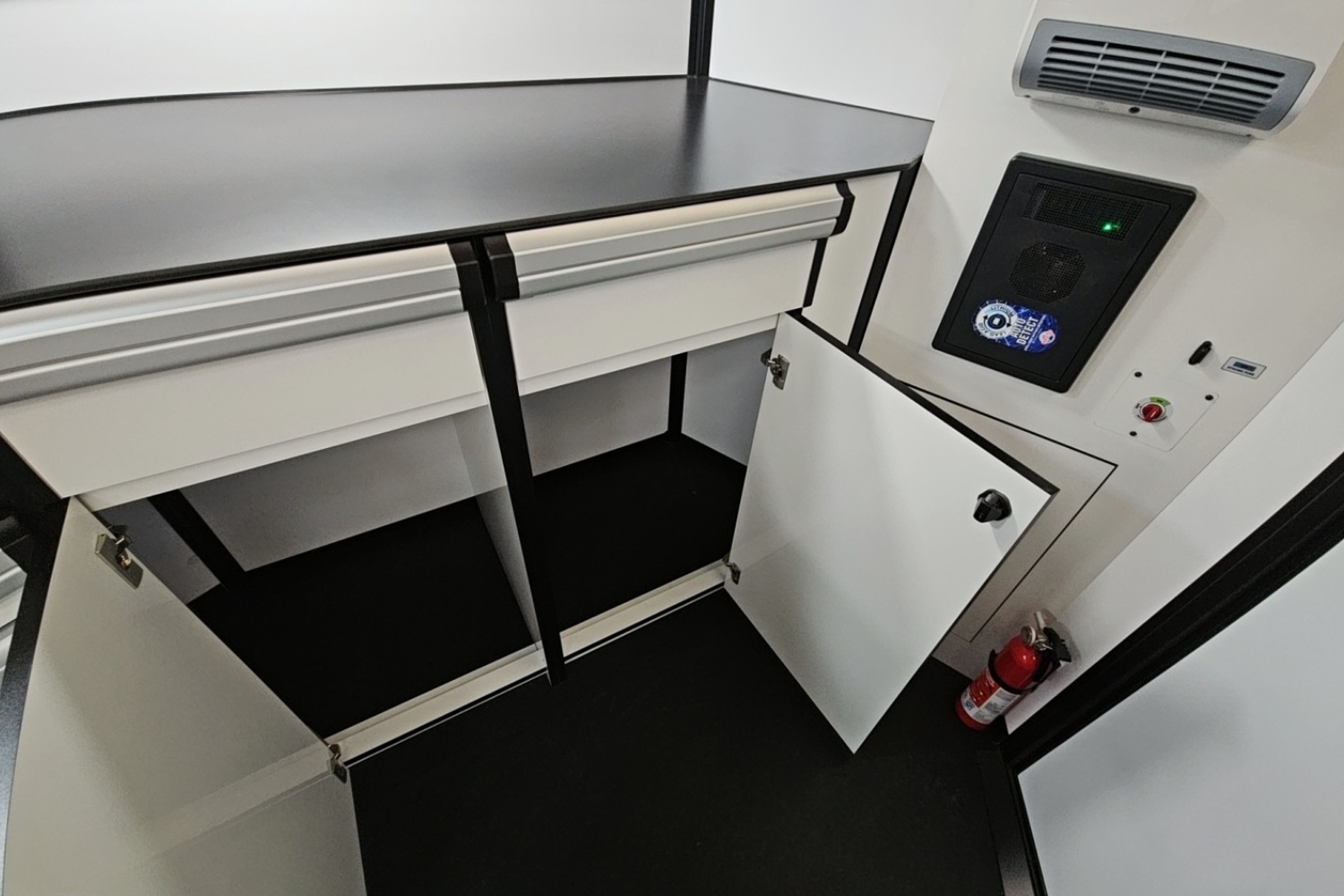

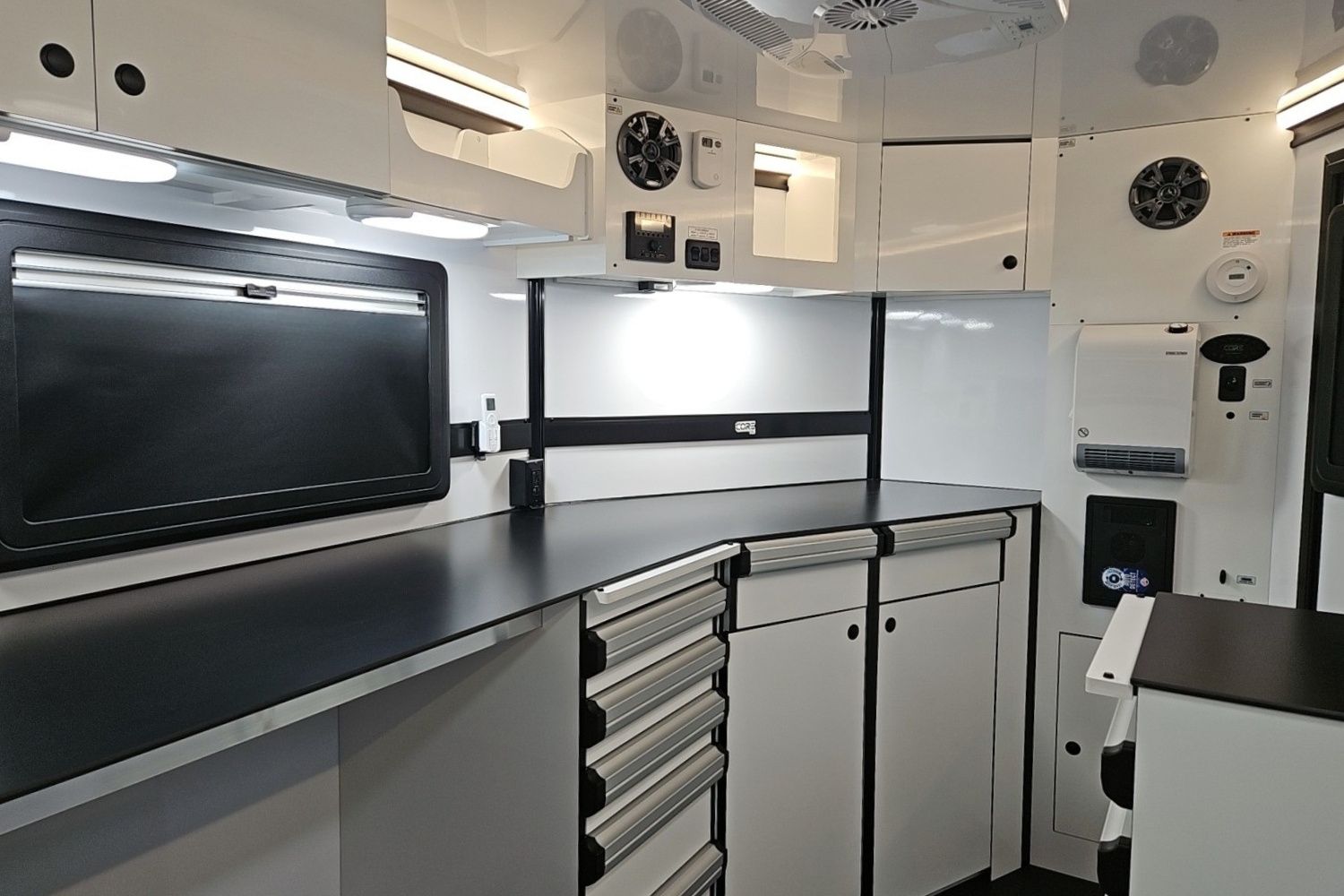

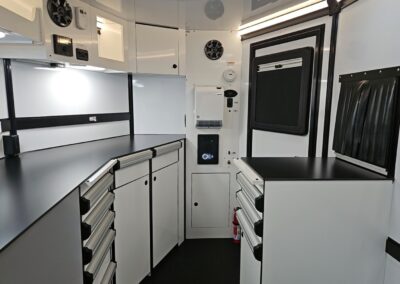

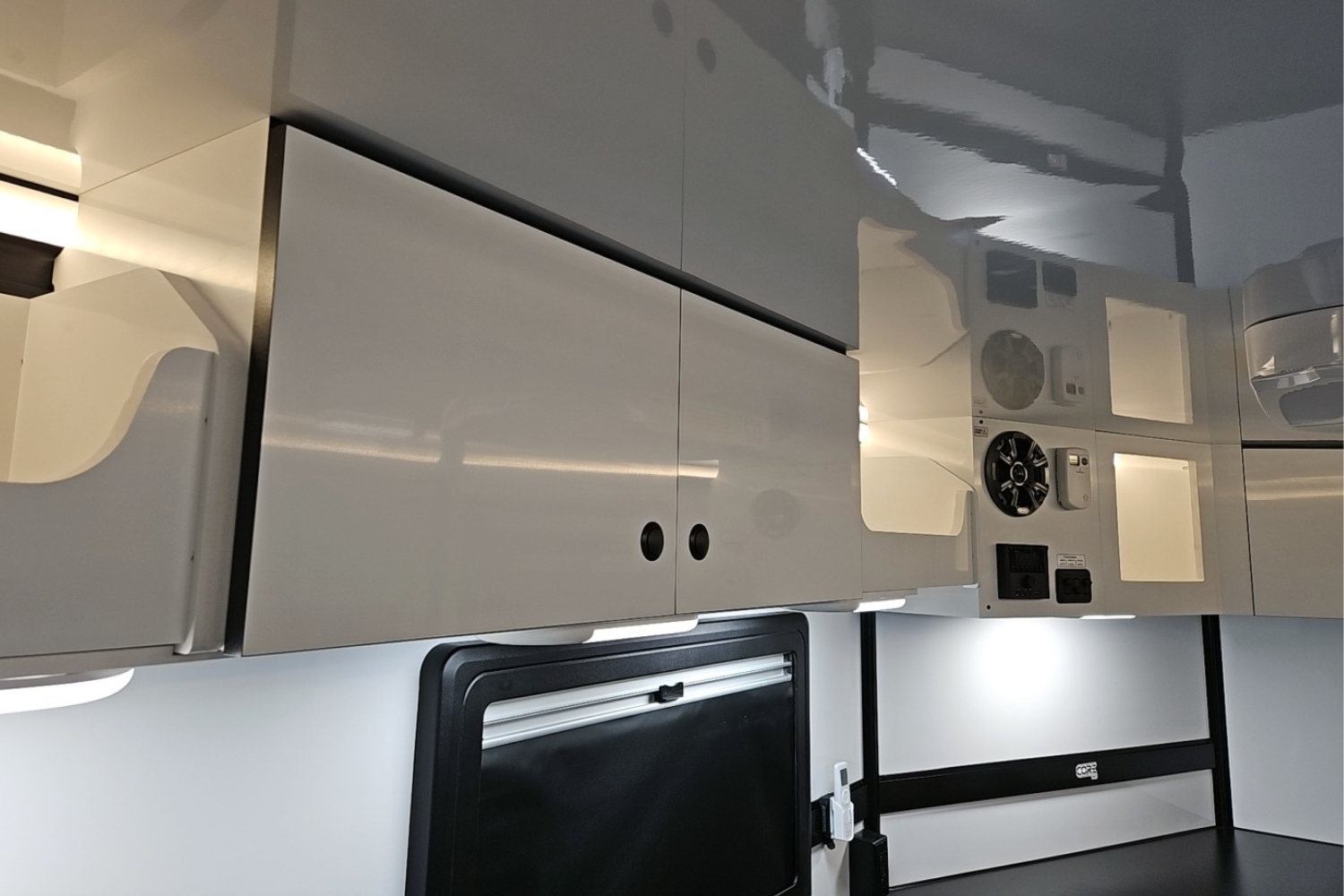

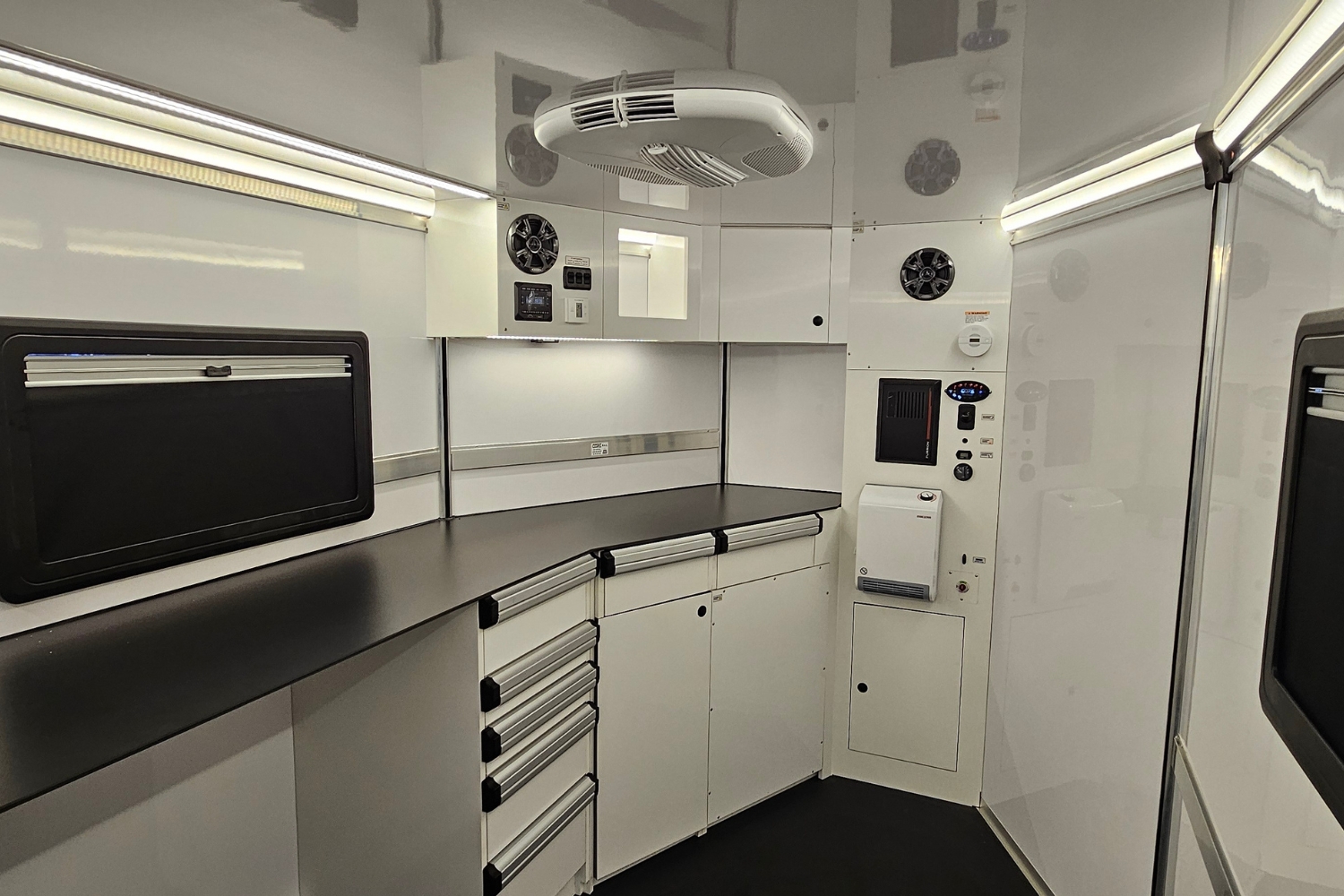

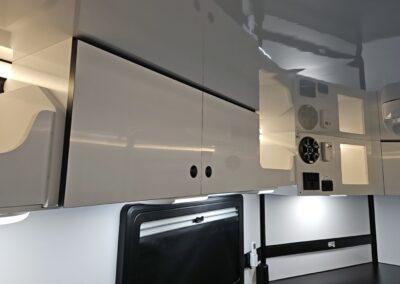

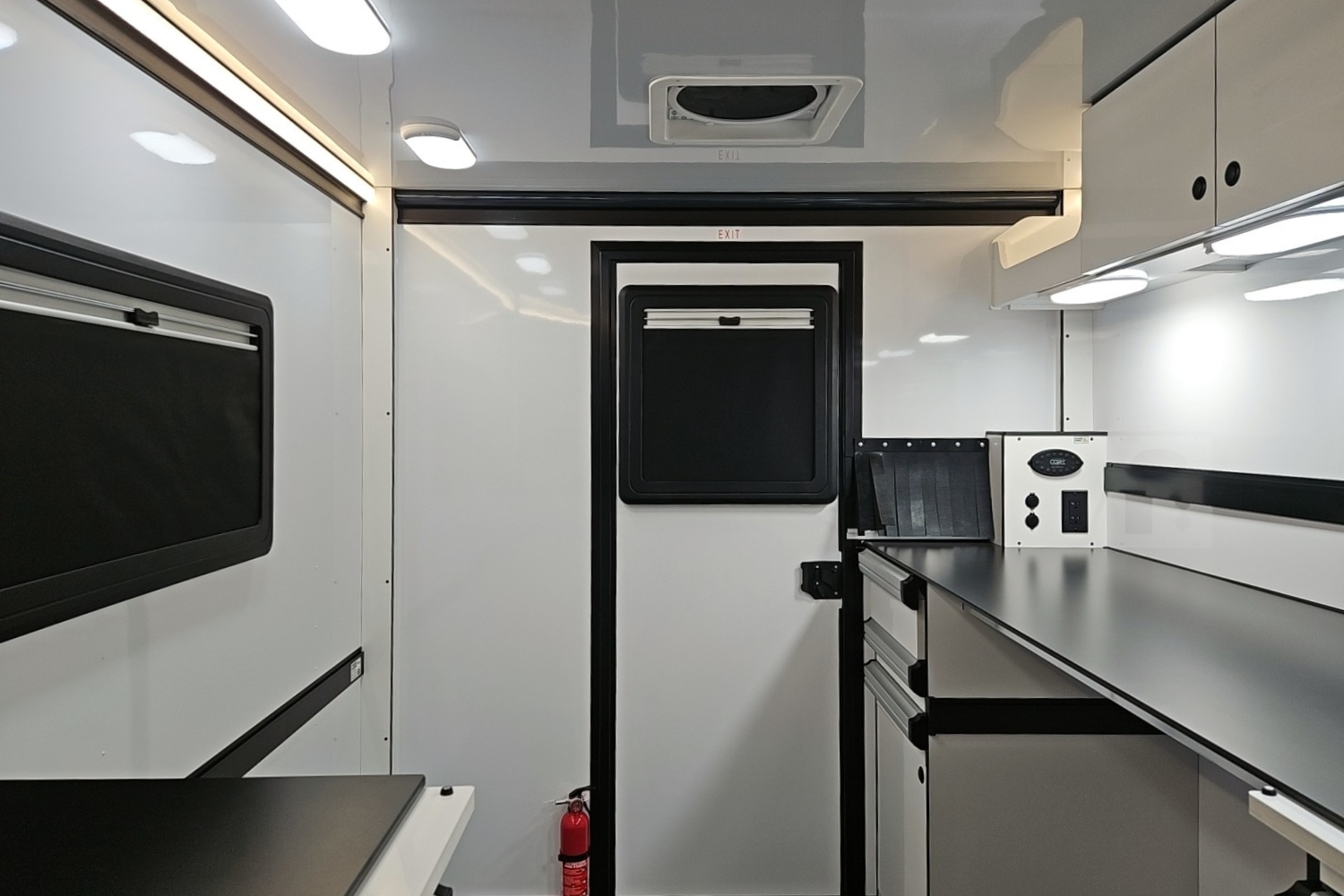

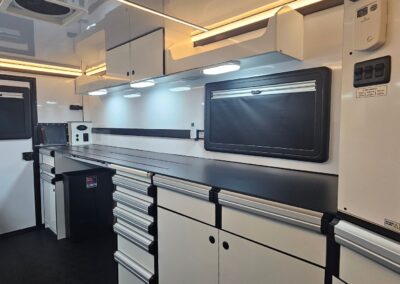

  • Storage Cabinets, Tool Chests & Laboratory Grade Countertops
  • Torsion Axles w/ Electric Brakes and Aluminum Wheels
  • CORE Rail Mounting System for Tool Storage
    And More!

OPTIONAL FEATURES

E-DRIVE logo for CORE PRO

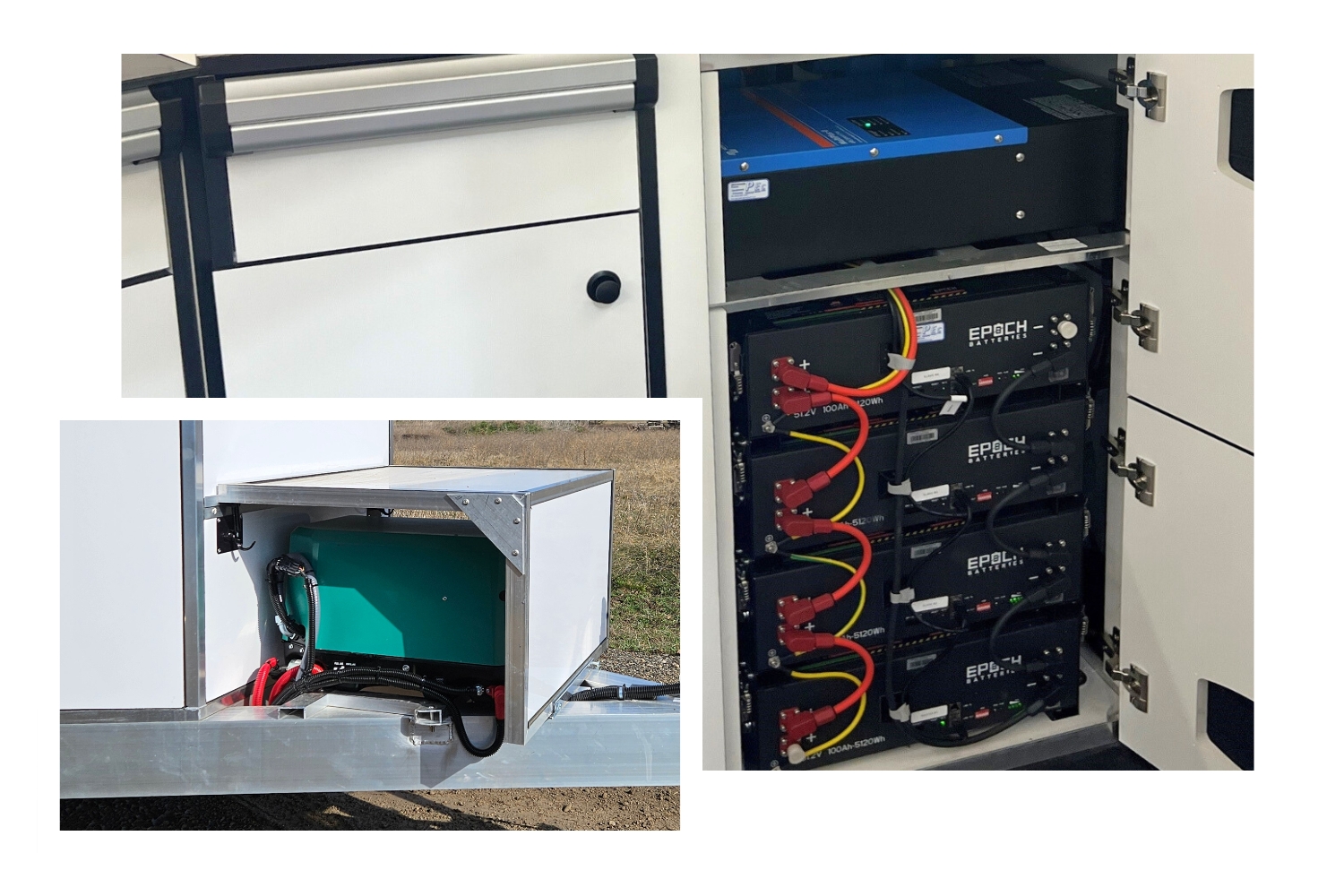

  • 10.2kWh Lithium Battery Pack, 4kW Inverter, 360W Solar Array
  • Add 5.1kWh Battery Pack (Can add 2 additional)
  • Max Solar Pkg: Increase to 1140W Solar Array

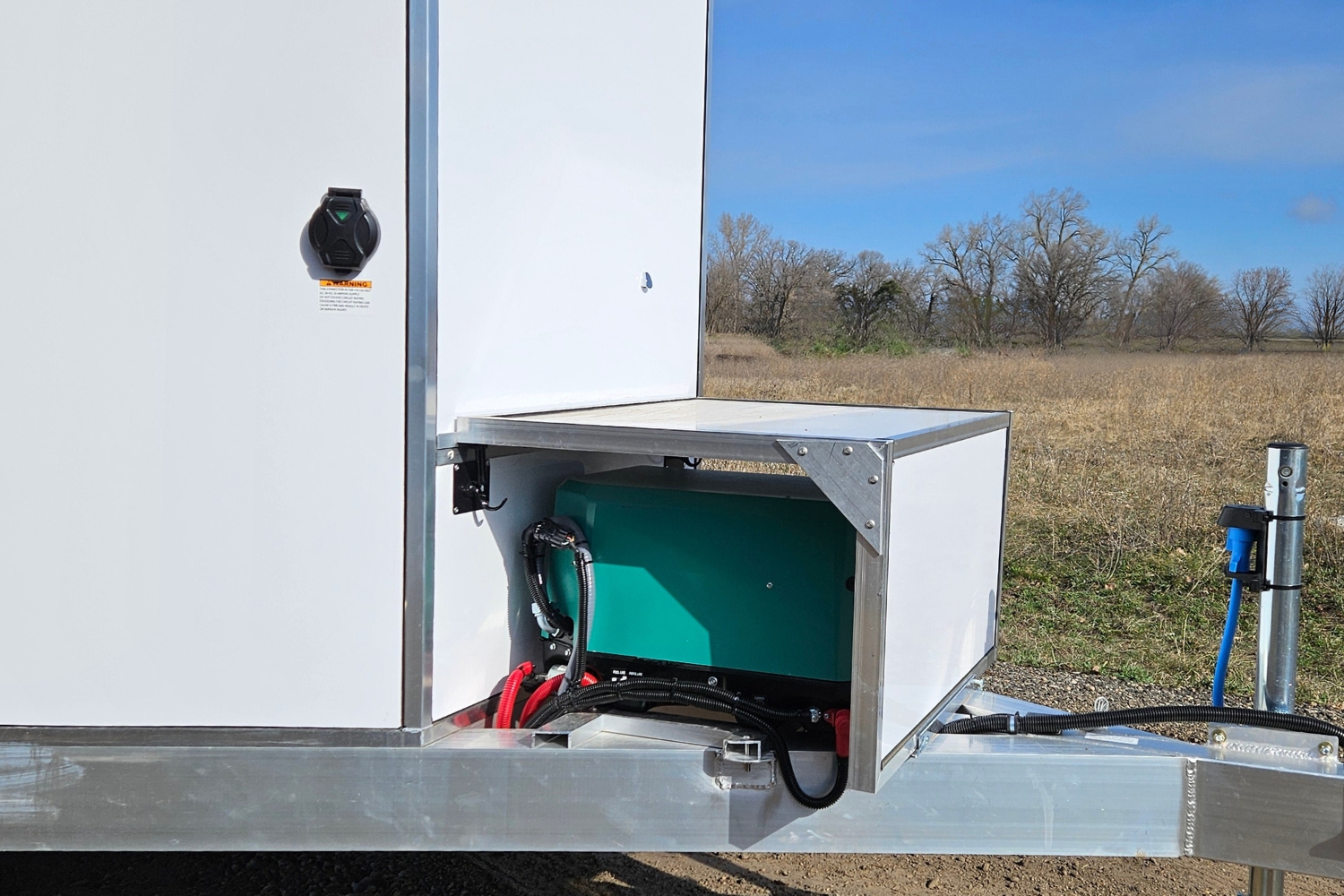

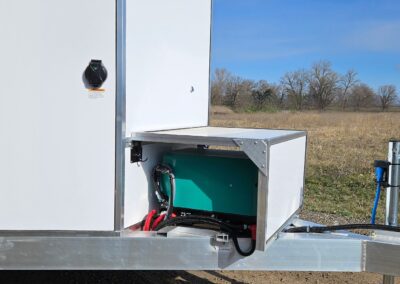

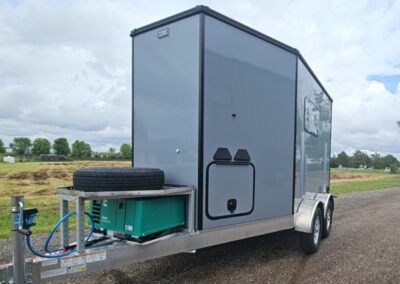

GENERATORS

  • Honda 7000 EUiS
  • Cummins Portable P2500i w/ Remote Start (Gasoline)
  • Cummins Portable P4500i w/ Remote Start (Gasoline)
  • Cummins Onan QG 4000 (Gasoline)
  • Cummins Onan Q6 5500 EFI (Gasoline)
  • NPS Y4500 ECO (Gasoline)
  • NPS Y5500 ECO (Gasoline)
A compact and lightweight core pro fiber splicing trailer designed for efficient and reliable fiber splicing operations.
