Frequently Asked Questions

  • Up to 3x usable runtime vs. lead acid batteries at 1/2 the weight
  • Lithium batteries cost about 40% as much as lead acid in total delivered energy over the lifetime.
  • Generators are loud, require maintenance, consume fuel, etc. and may not be allowed everywhere.

Yes! The industry batteries in the CORE are internally heated and will work in cold temperatures.

It depends on the temperature, sun, etc. The superior insulation in the CORE PRO enables the 10kW-hr system to run for your whole workday in most cases.

Electric heat will typically offer a 30 degree temperature rise for 12-24 hours. In extreme applications a fuel-burning heater would allow over a week of runtime.

  • Solar adds to runtime. The standard 200W panels can add 5-10% depending on sun. More importantly, they keep the battery topped off when not in use.
  • Larger solar arrays are available and can have a significant runtime benefit.
  • On a 30A/120VAC outlet, the 10dW-hr battery will take 4-5 hours to charge
  • On a 15A/120VAC outlet, the 10kW-hr battery will take 8-10 hours

None. Long term storage should be done at 50% state of charge.

  • It is much less likely than gasoline to be the cause of a fire.
  • The LiFePO4 (lithium iron phosphate) chemistry is considered much safer than many other types of batteries. No combustible gases are released.

No. The battery system is low voltage DC.

With proper use up to 10 years and 2,000 cycles is expected versus ~200-400 for lead acid. The best practice is to avoid using them below 10%.

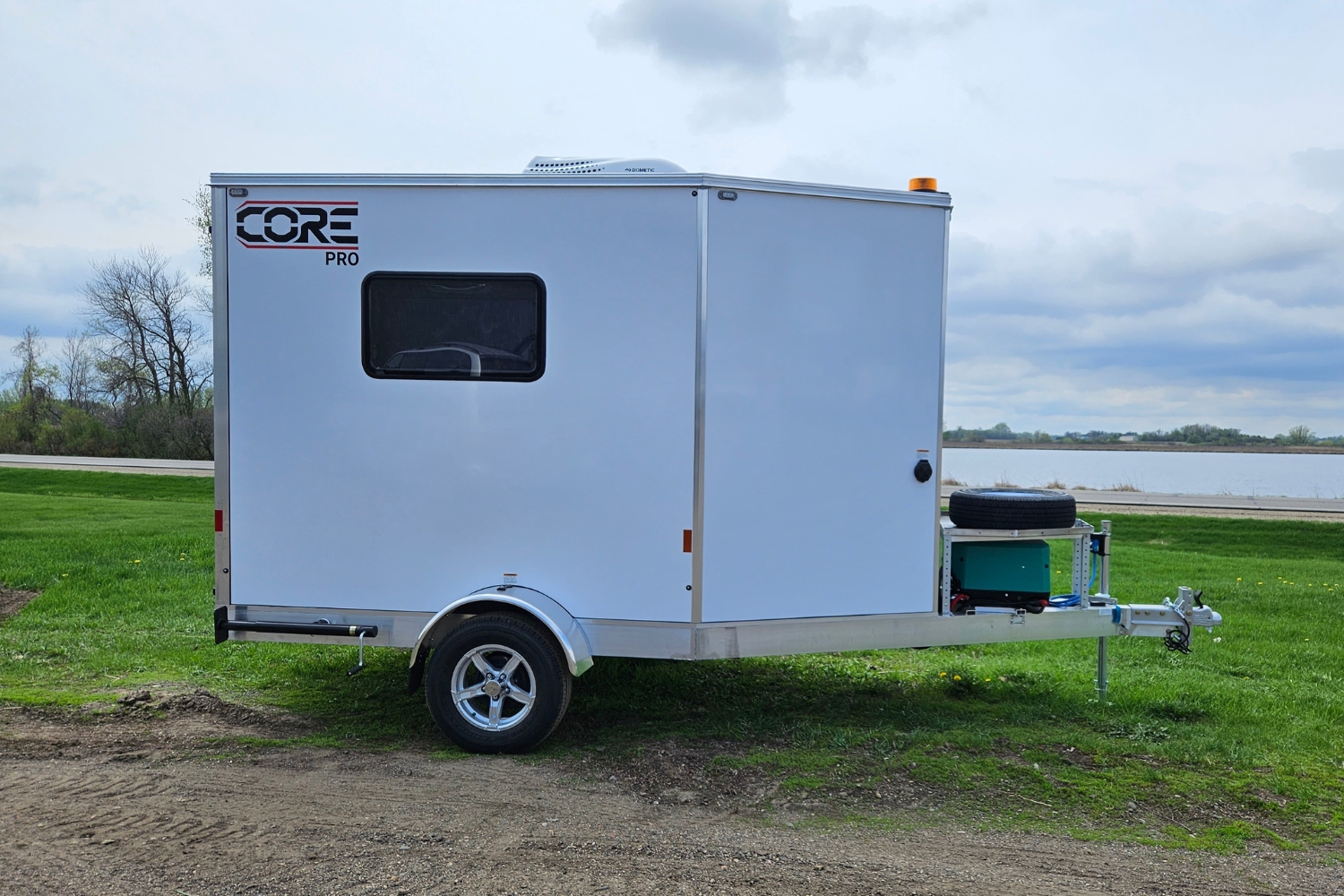

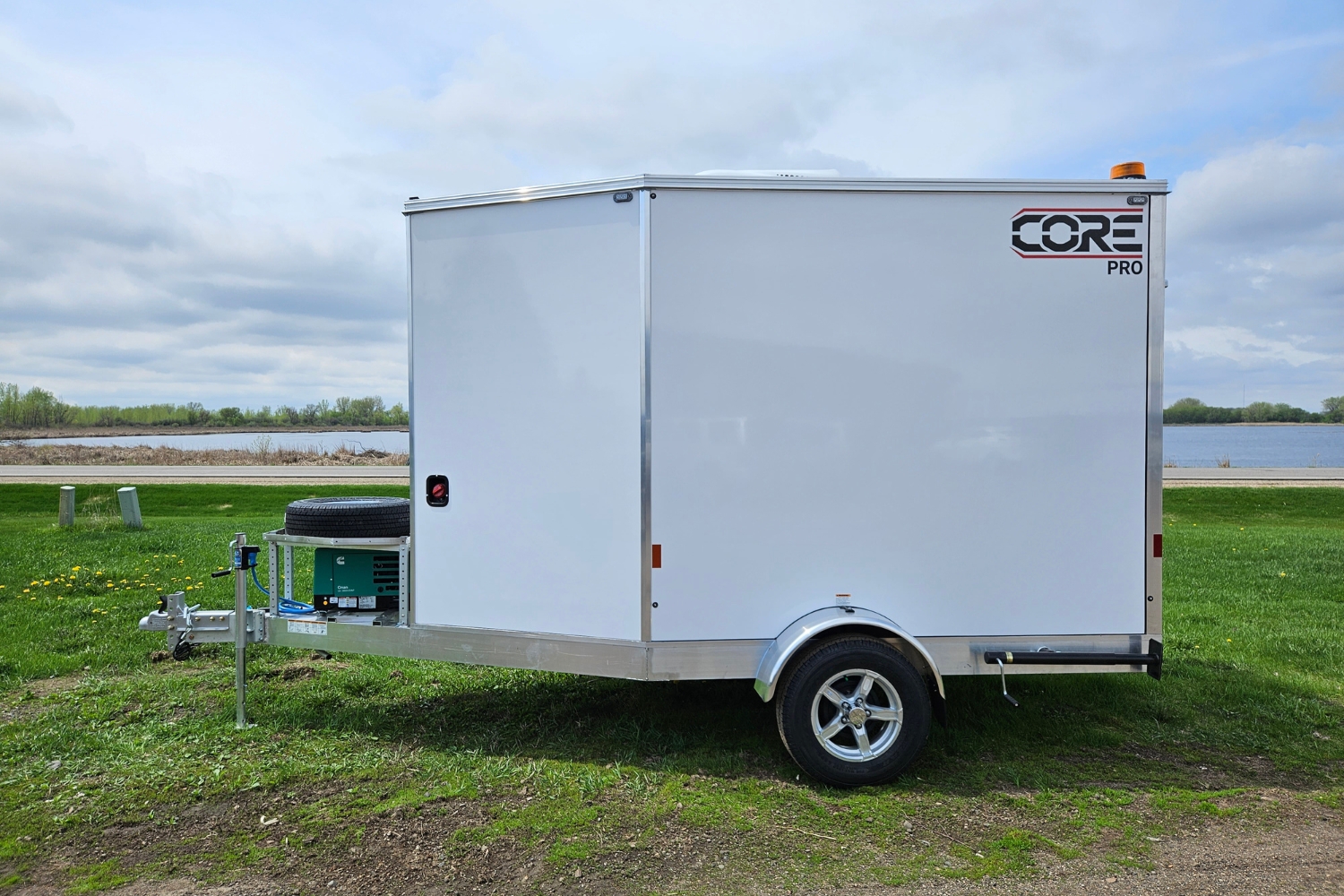

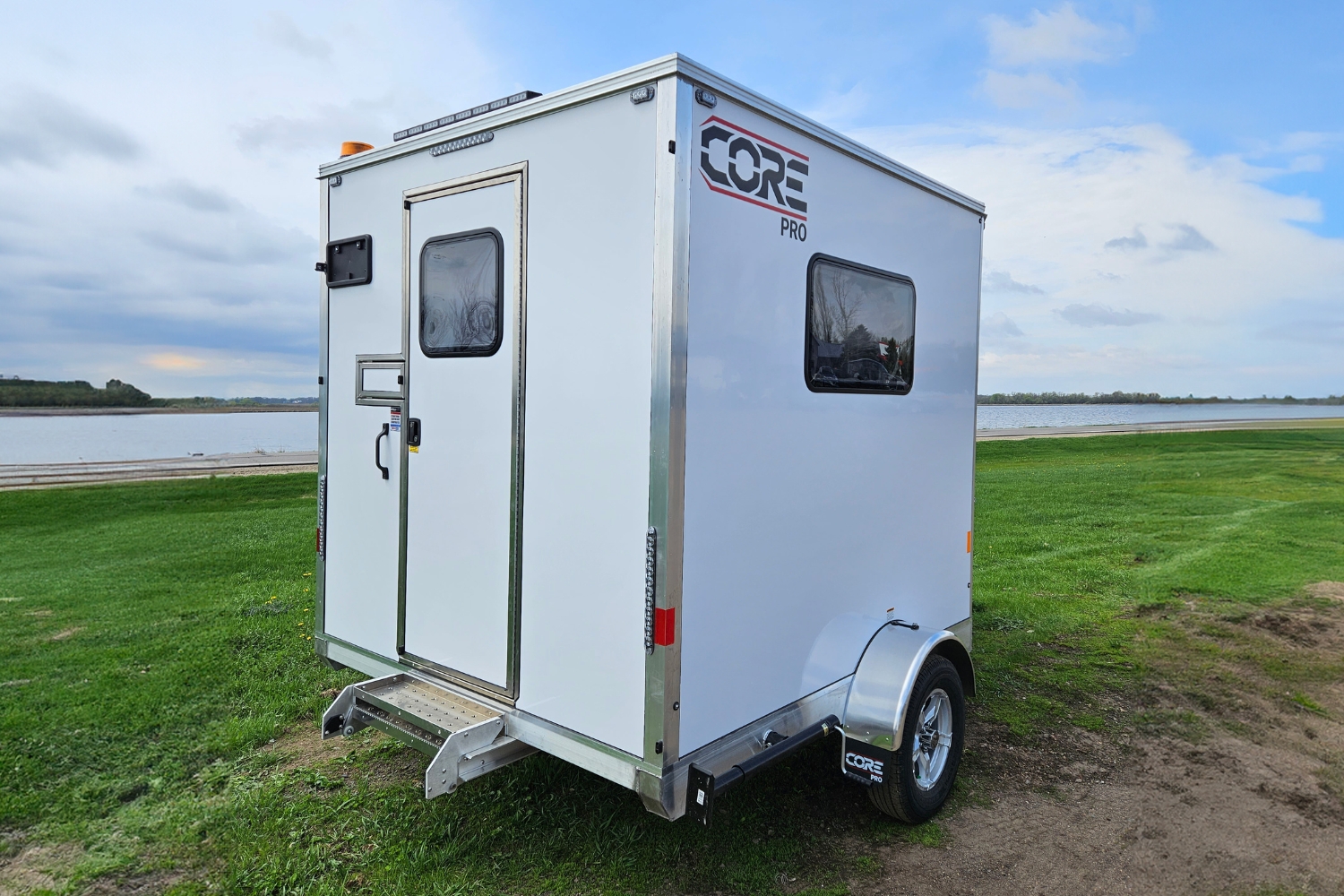

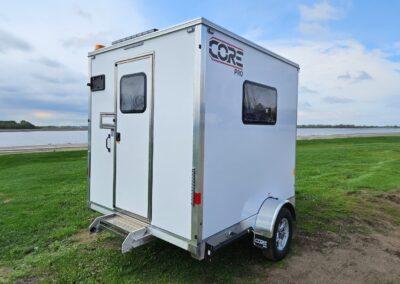

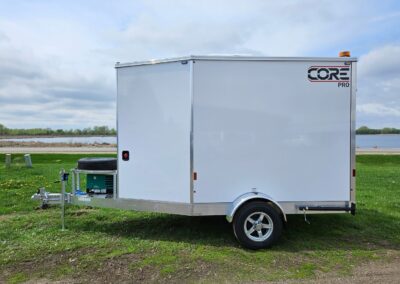

7012FS

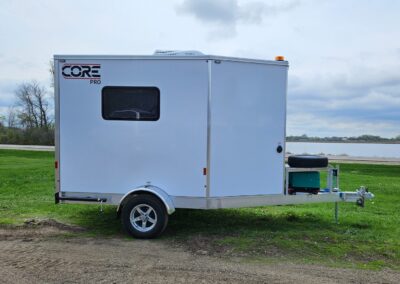

Single Axle

  • Overall Length                        204”
  • Overall Height (w/ AC)      118”
  • Overall Width                         102”
  • Ground Clearance                16”
  • Interior Height                        80.5”
  • Interior Width                         80.25”
  • Interior Length                       139.125”
  • Base Weight                             2200lbs
  • GVWR                                          3850lbs

Example Floor Plans

Standard

Full Featured

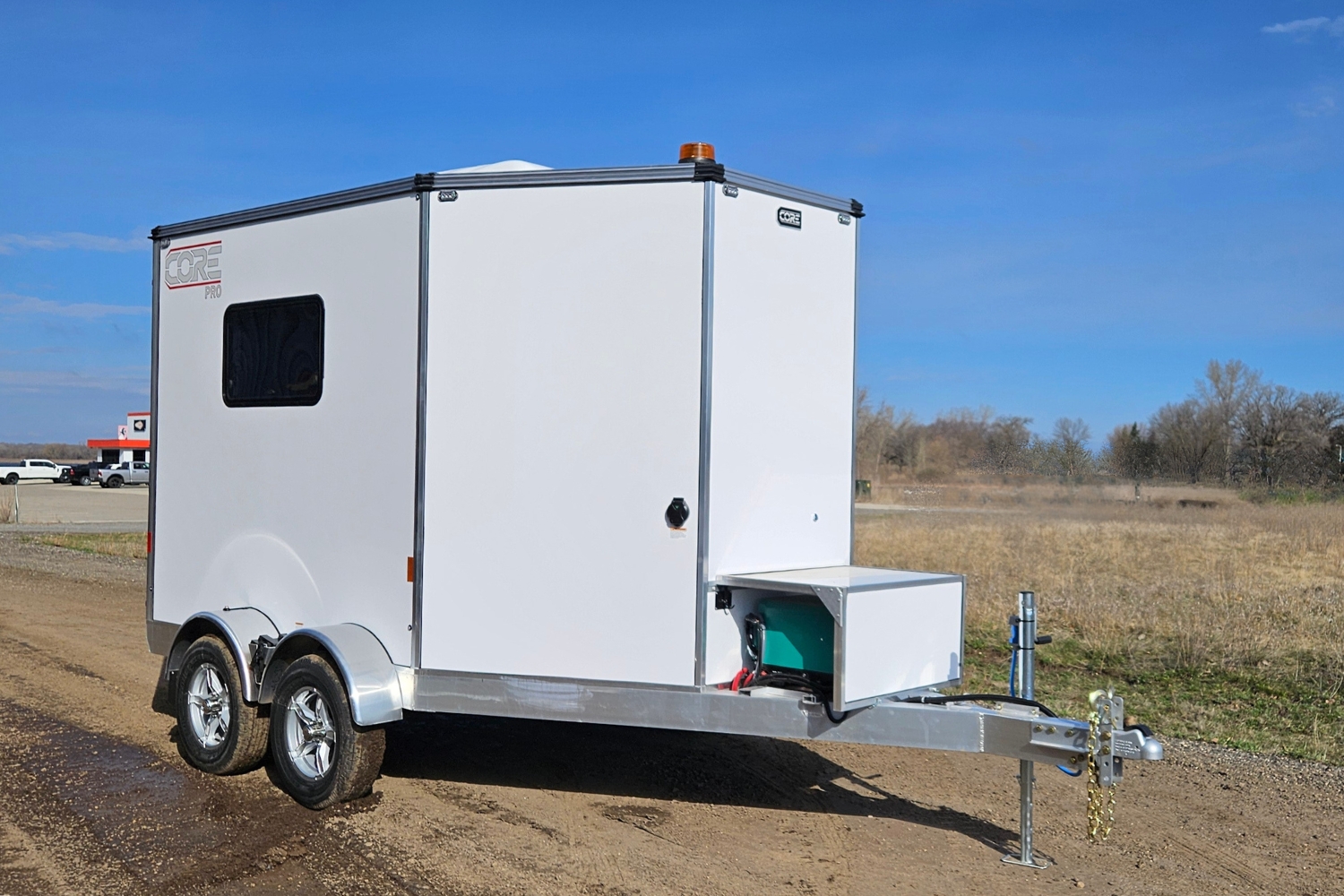

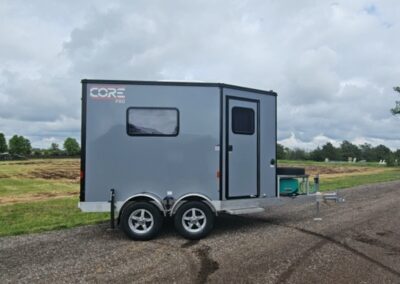

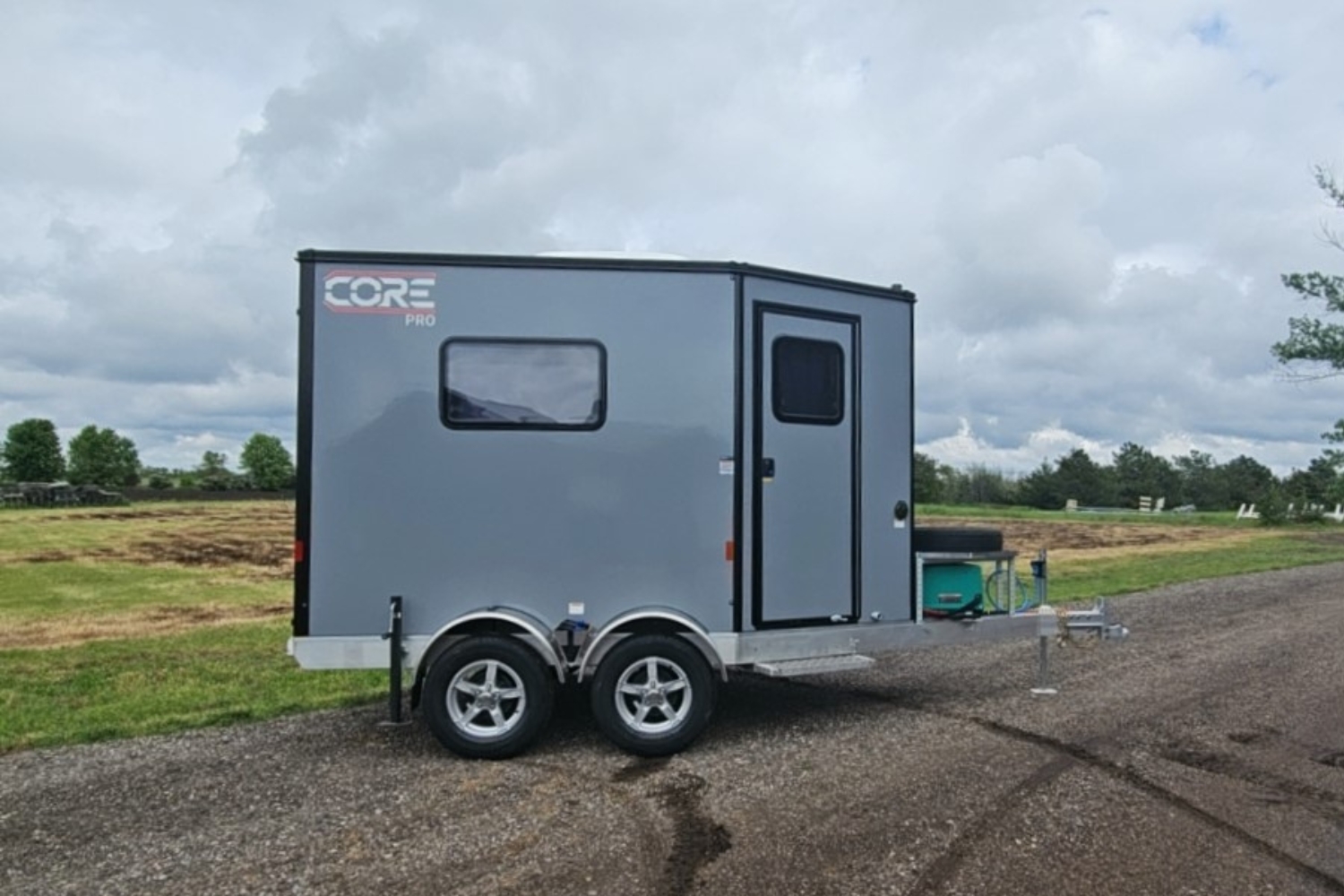

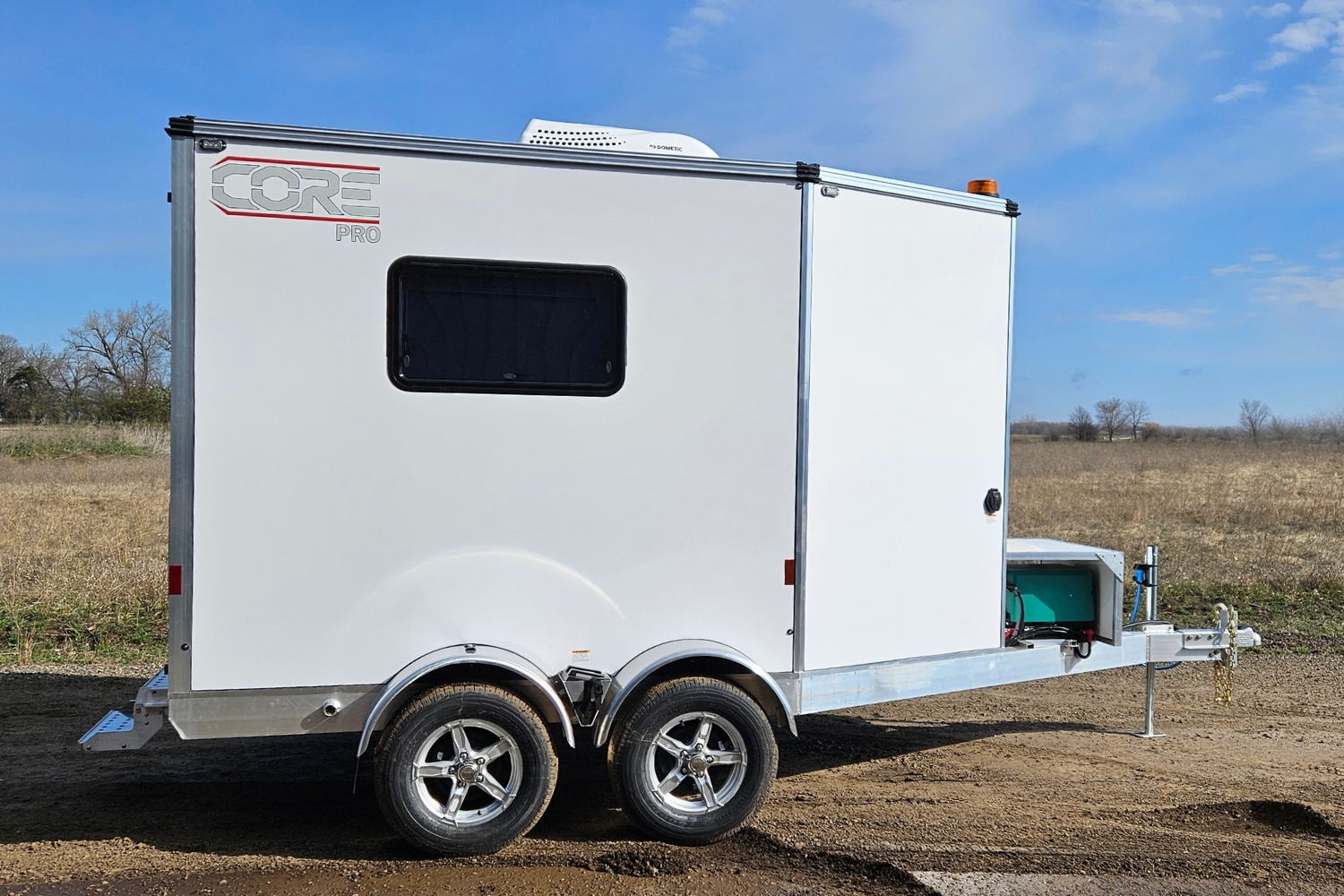

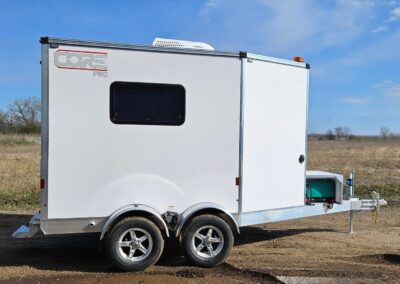

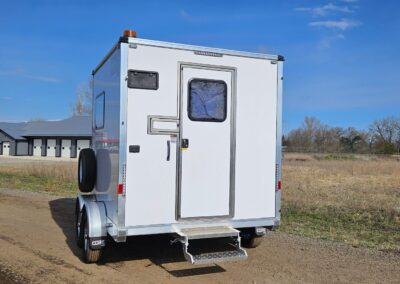

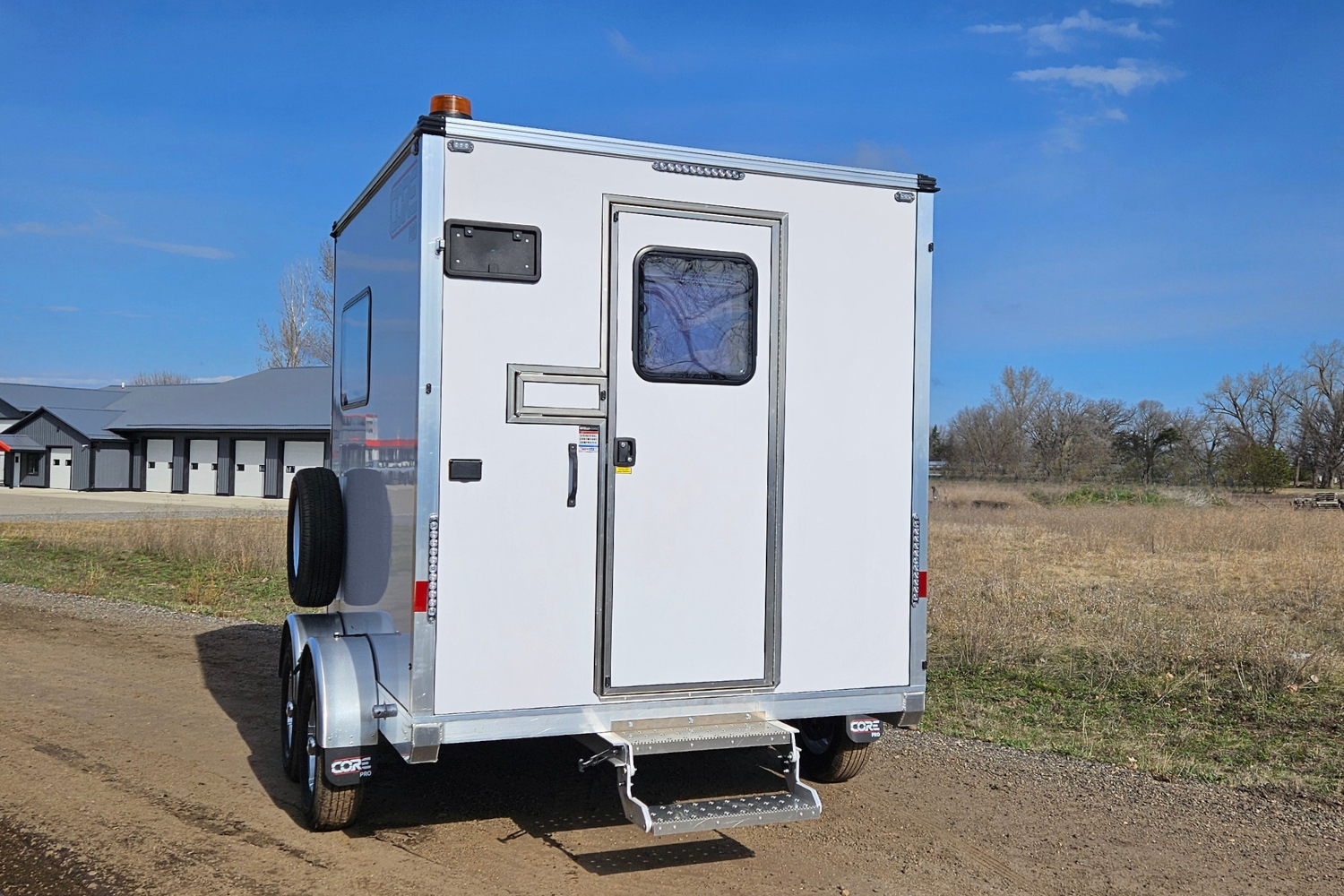

7012FT

Tandem Axle (shown w/ options)

  • Overall Length                        204”
  • Overall Height (w/ AC)      118”
  • Overall Width                         102”
  • Ground Clearance                16”
  • Interior Height                        80.5”
  • Interior Width                         80.25”
  • Interior Length                       139.125”
  • Base Weight                             2410lbs
  • GVWR                                         7000lbs

Example Floor Plans

Standard

Full Featured

7015FT

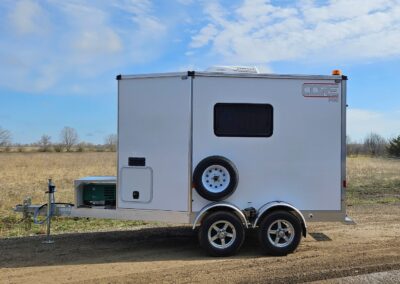

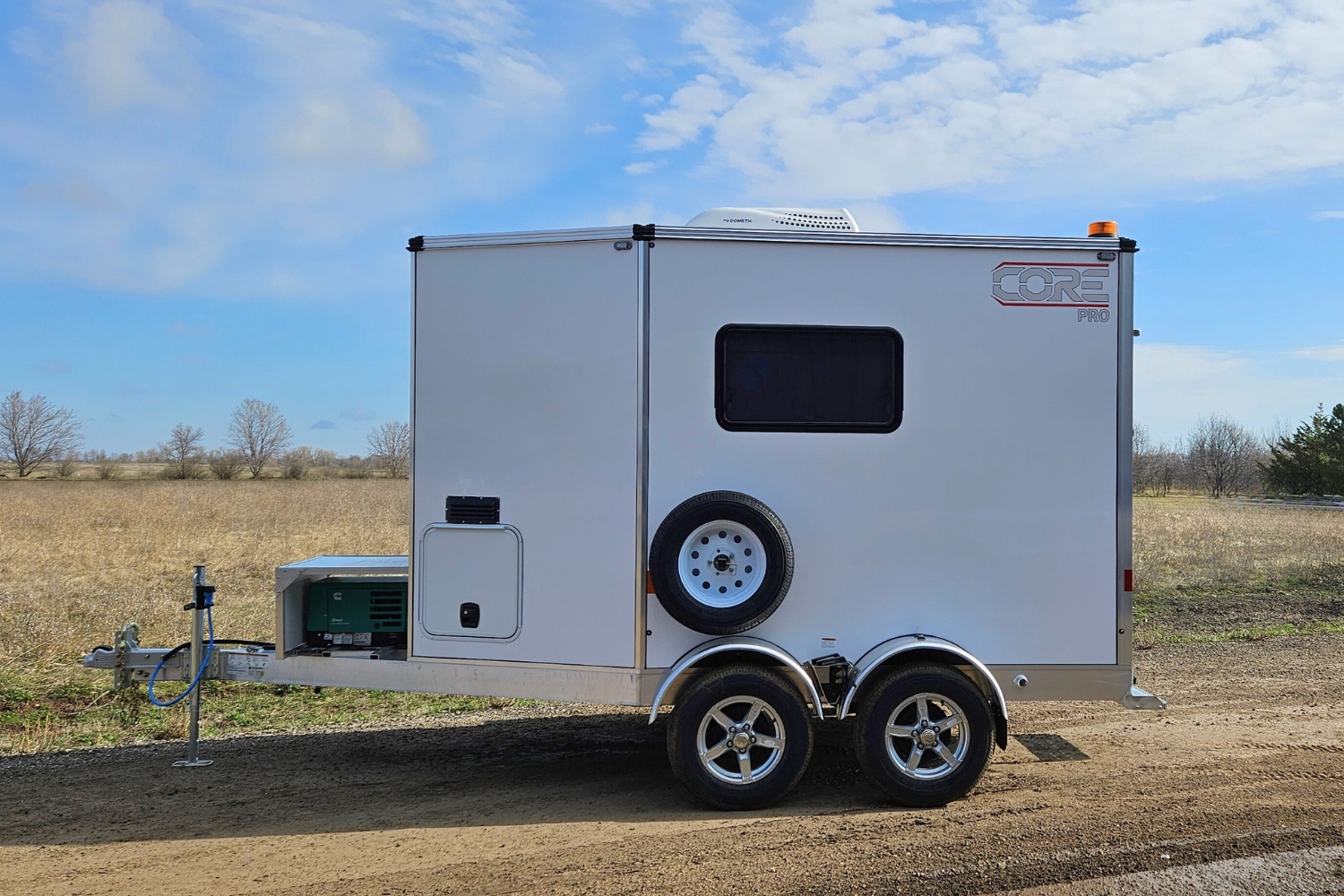

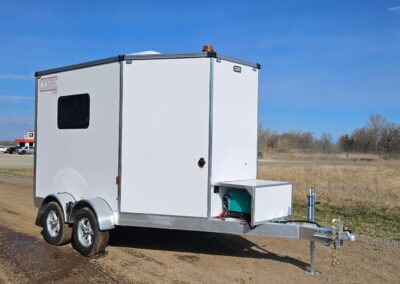

Tandem Axle (shown w/ options)

  • Overall Length                         252”
  • Overall Height (w/ AC)       118”
  • Overall Width                          102”
  • Ground Clearance                 16”
  • Interior Height                        80.5”
  • Interior Width                         80.25”
  • Interior Length                       187.125”
  • Base Weight                             2565lbs
  • GVWR                                         7000lbs

Example Floor Plans

Standard

Full Featured

Lightweight

Strong

Waterproof

Durable

Dent Resistant

Minimal RF Signal Loss

Your operating room is ready.

CNC-fabricated panels provide industry-leading fit and finish.

Core-to-Core bonding leaves no voids in the structure.

Improved sealing keeps out dirt, dust, and insects.

The best insulated trailers on the market.

Quick and easy heat up or cool down.

Maximum comfort with minimal power needs.

Torsion suspension

High-frame ground clearance.

Wiring is protected inside the sealed trailer and not hanging or exposed under the frame.

Optional stabilizer jacks are removable.

Customizable to your specific needs.

Incorporate options like our drop-down frame, floor access panels, or even our patented hybrid wheel/skid design to increase mobility to get the job done in the toughest of environments.

Higher Quality

N

COMPOSITE PANEL CONSTRUCTION

100% composite panel construction is extremely lightweight, strong, durable, dent-resistant, and waterproof.

N

STAY WARM OR COOL

The best insulated trailers on the market allow for quick and easy heat up or cool down for maximum comfort with minimal power needs.

N

OFF-ROAD CAPABILITY

High frame ground clearance.  Torsion suspension. Wiring is protected inside the trailer and not exposed under the frame.

Standard Features

INTELLI-CORE Structural Composite Floor, Walls, and Roof

Fully Insulated R15 Roof, R11 Floor, and R9 Walls

30 Amp Generator/Shore Power Plug

High Efficiency, Low Profile Roof Mount A.C. Unit

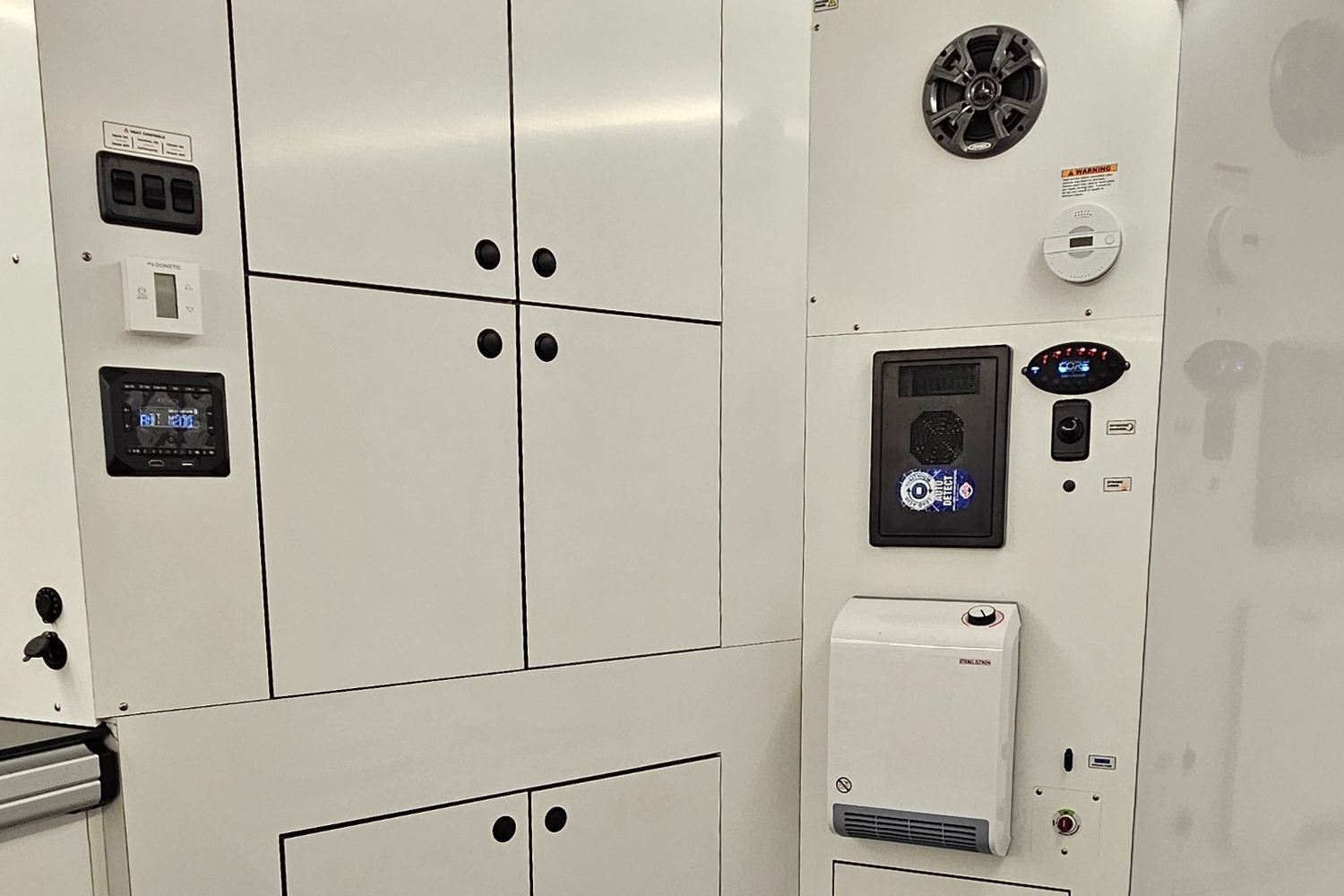

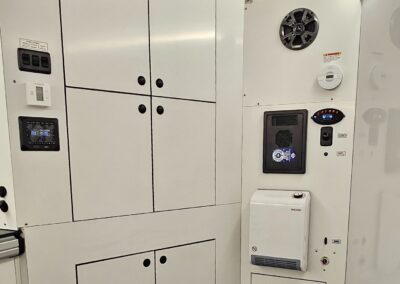

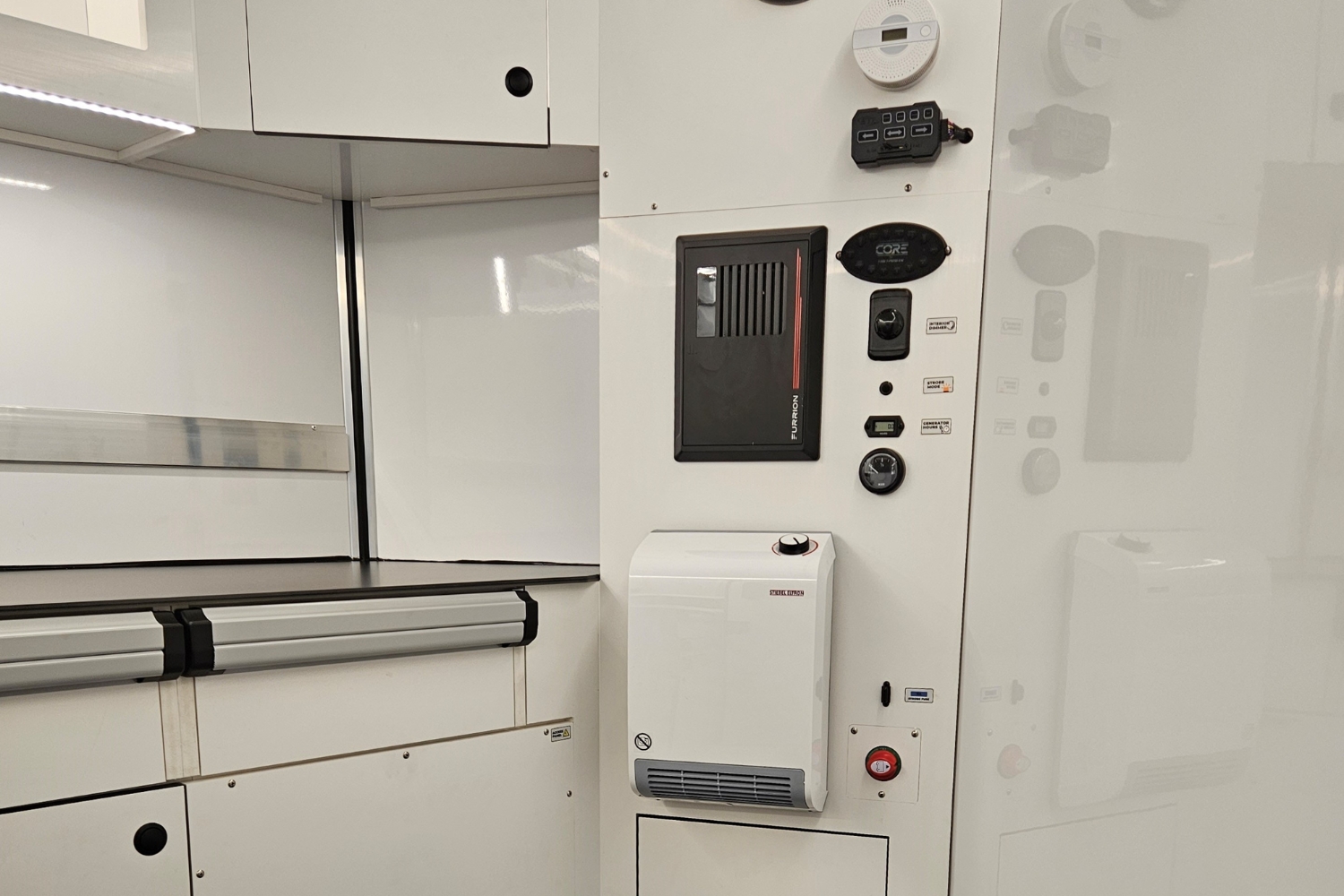

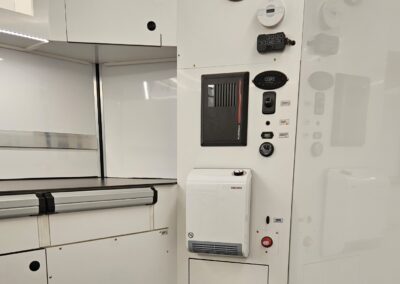

1500W Elec Wall Heater and 500W Toe Kick Heater

Full Perimeter LED Halo, Rear & Front Work Lights

LED Roof Mounted Beacon Lights

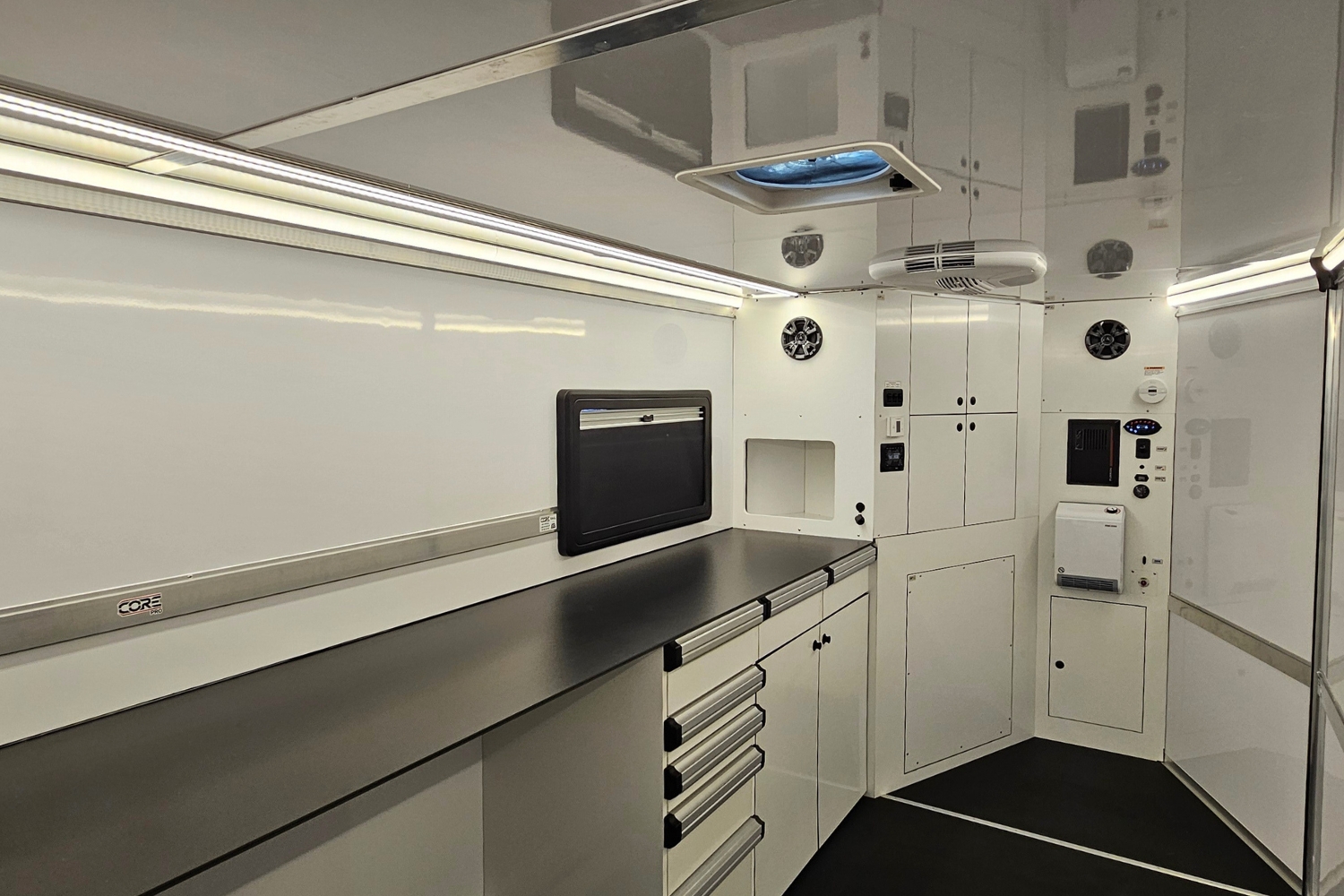

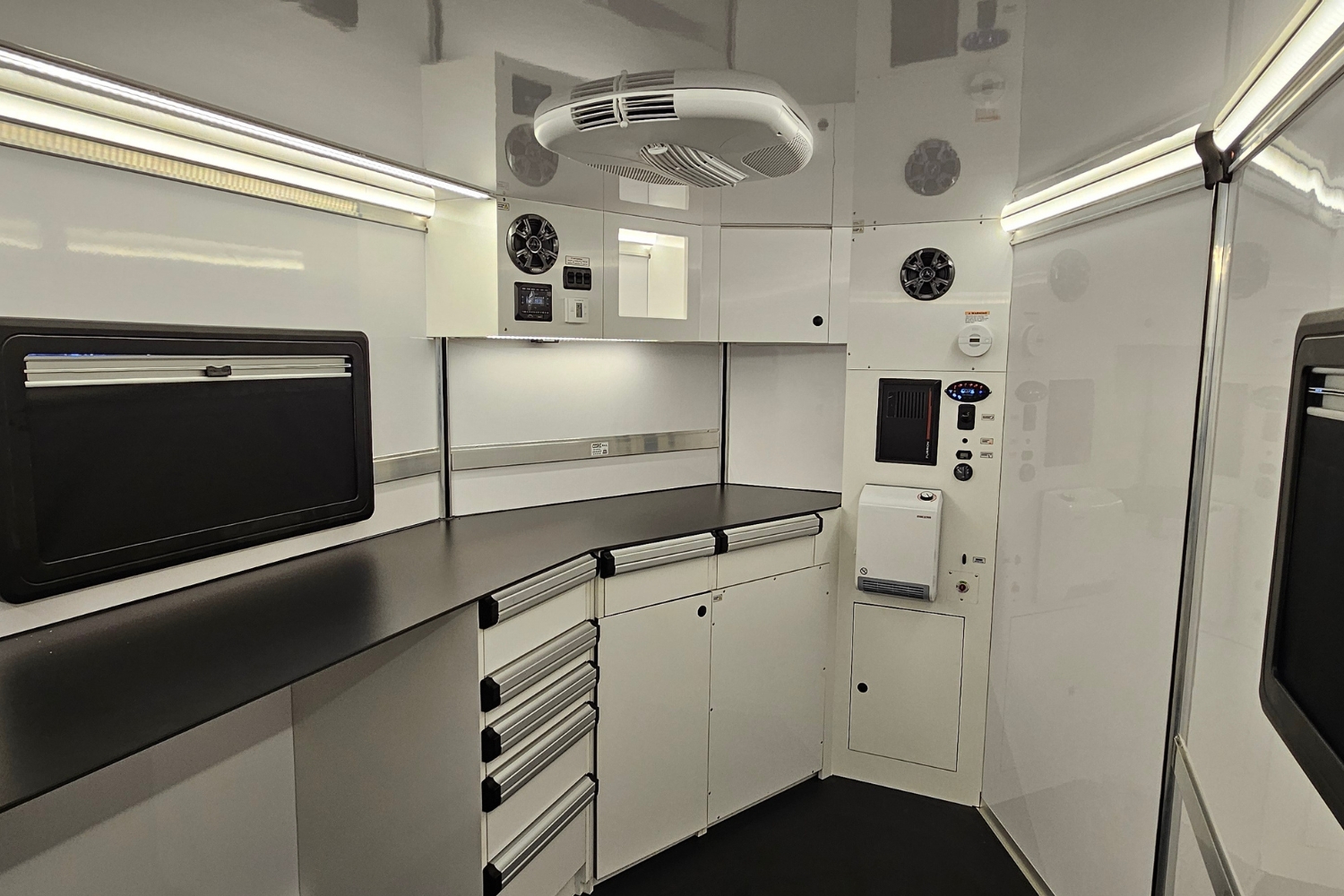

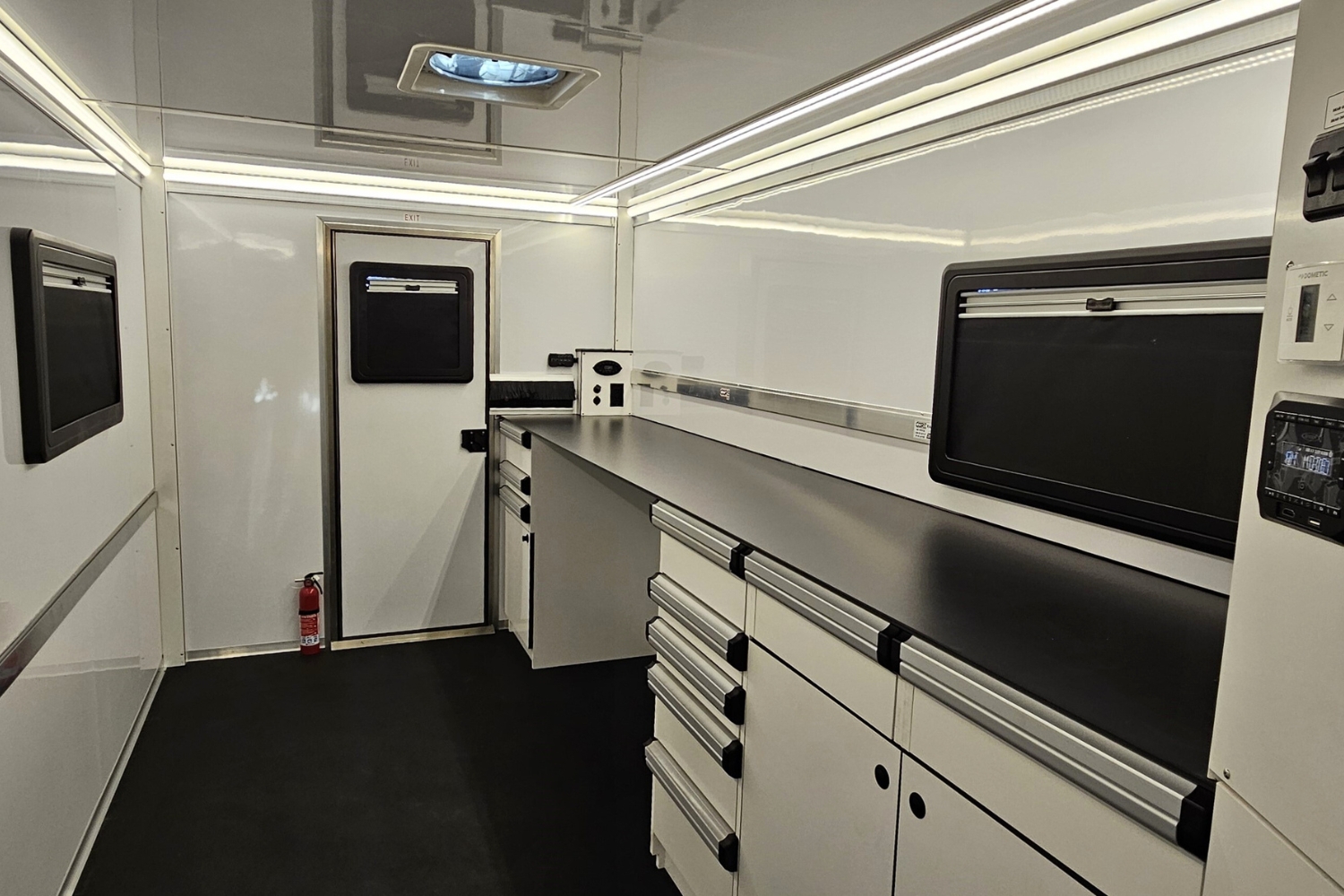

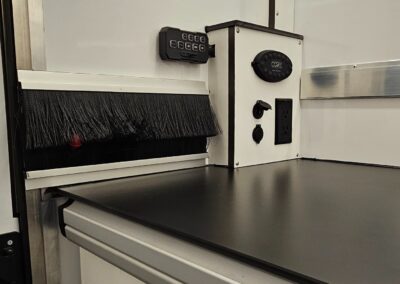

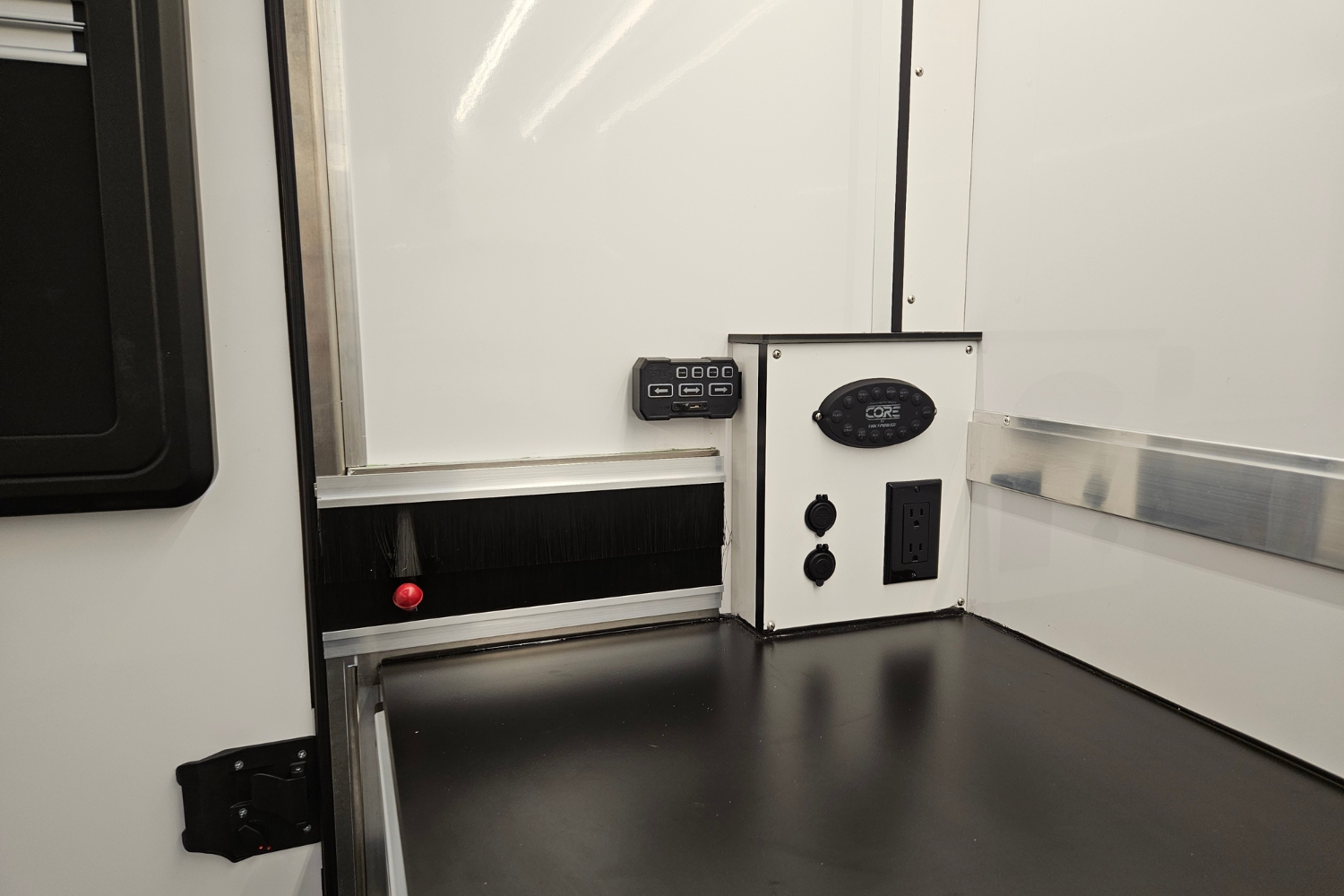

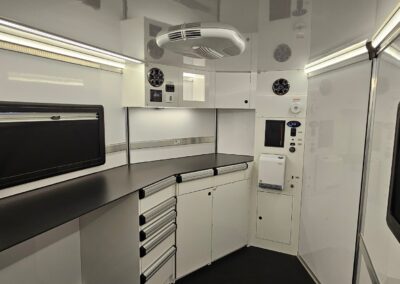

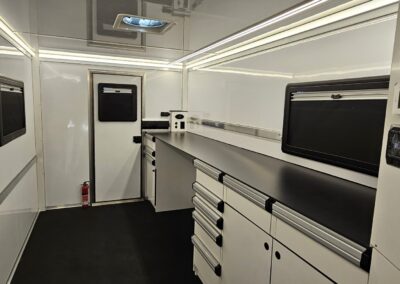

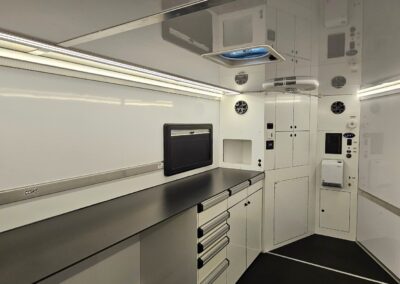

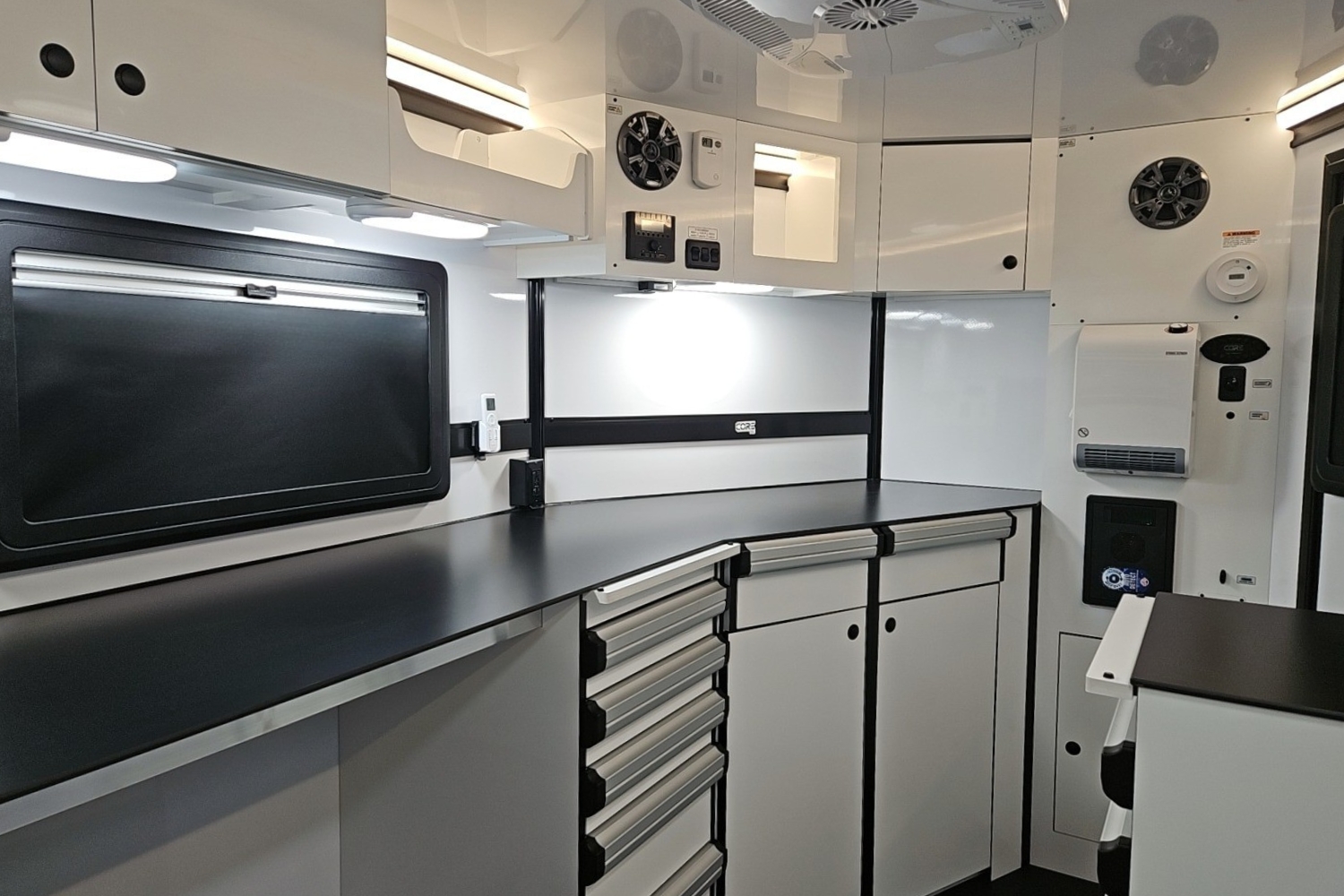

Storage Cabinets, Tool Chests, and Matte Black Solid Surface Countertops

Torsion Axles w/ Electric Brakes and Aluminum Wheels

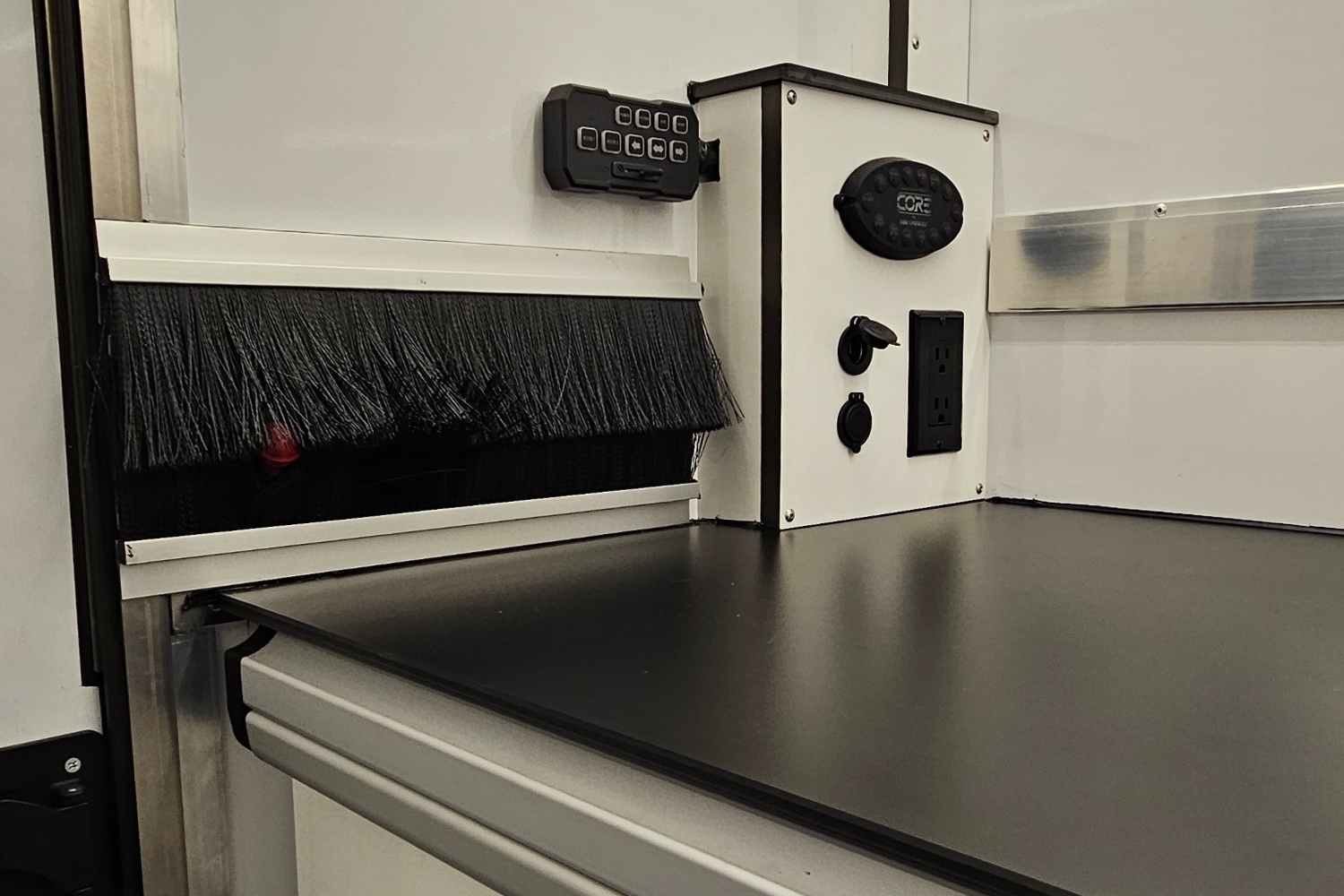

CORE Rail Mounting System for Tool Storage

And More!

Optional Features

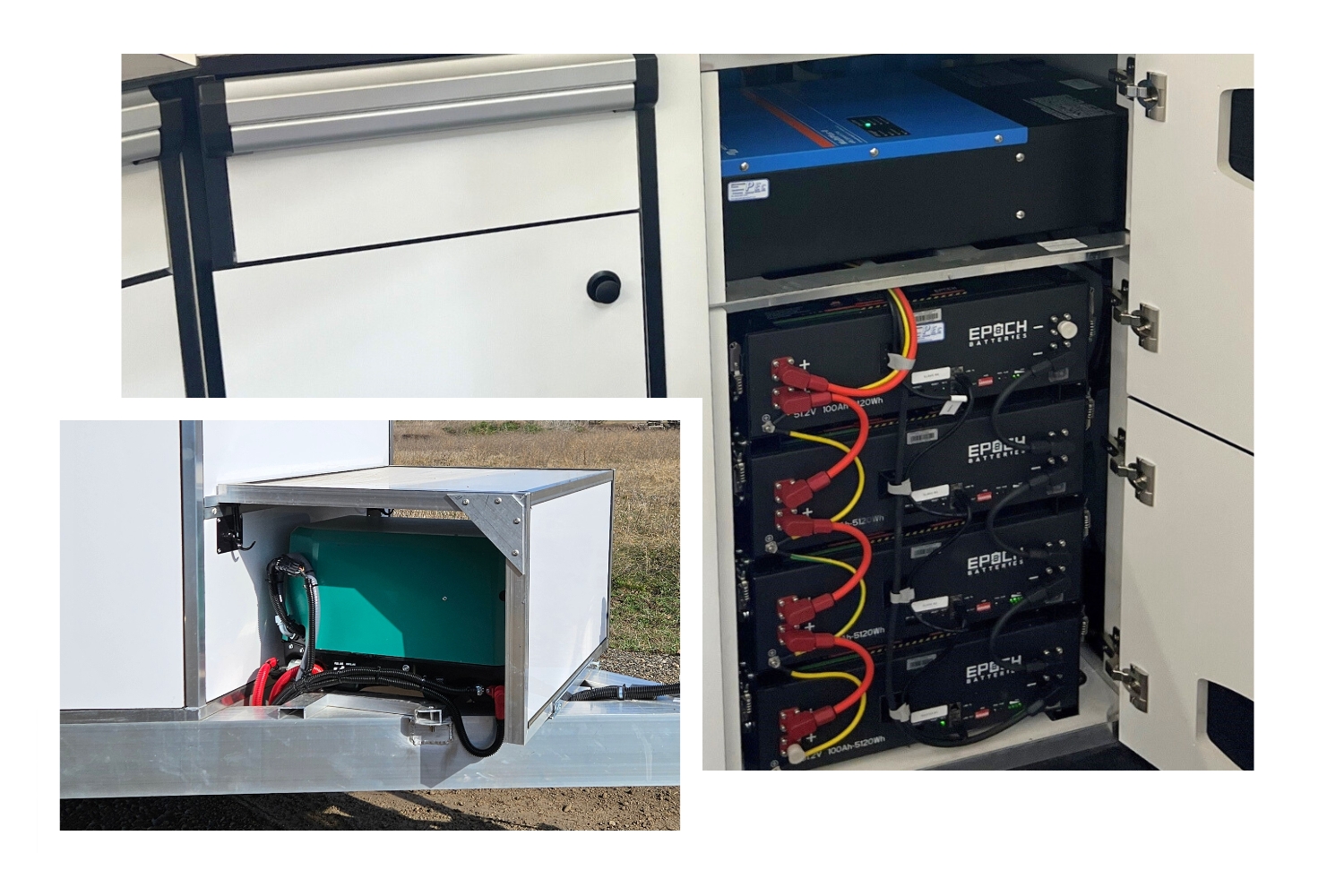

Off-Grid Energy Systems

– 10.2kWh Lithium Battery Pack, 4kW Inverter, 360W Solar Array

– Add 5.1kWh Battery Pack (Can add 2 additional)

– Max Solar Pkg: Increase to 1140W Solar Array

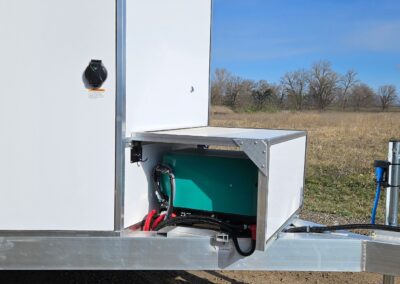

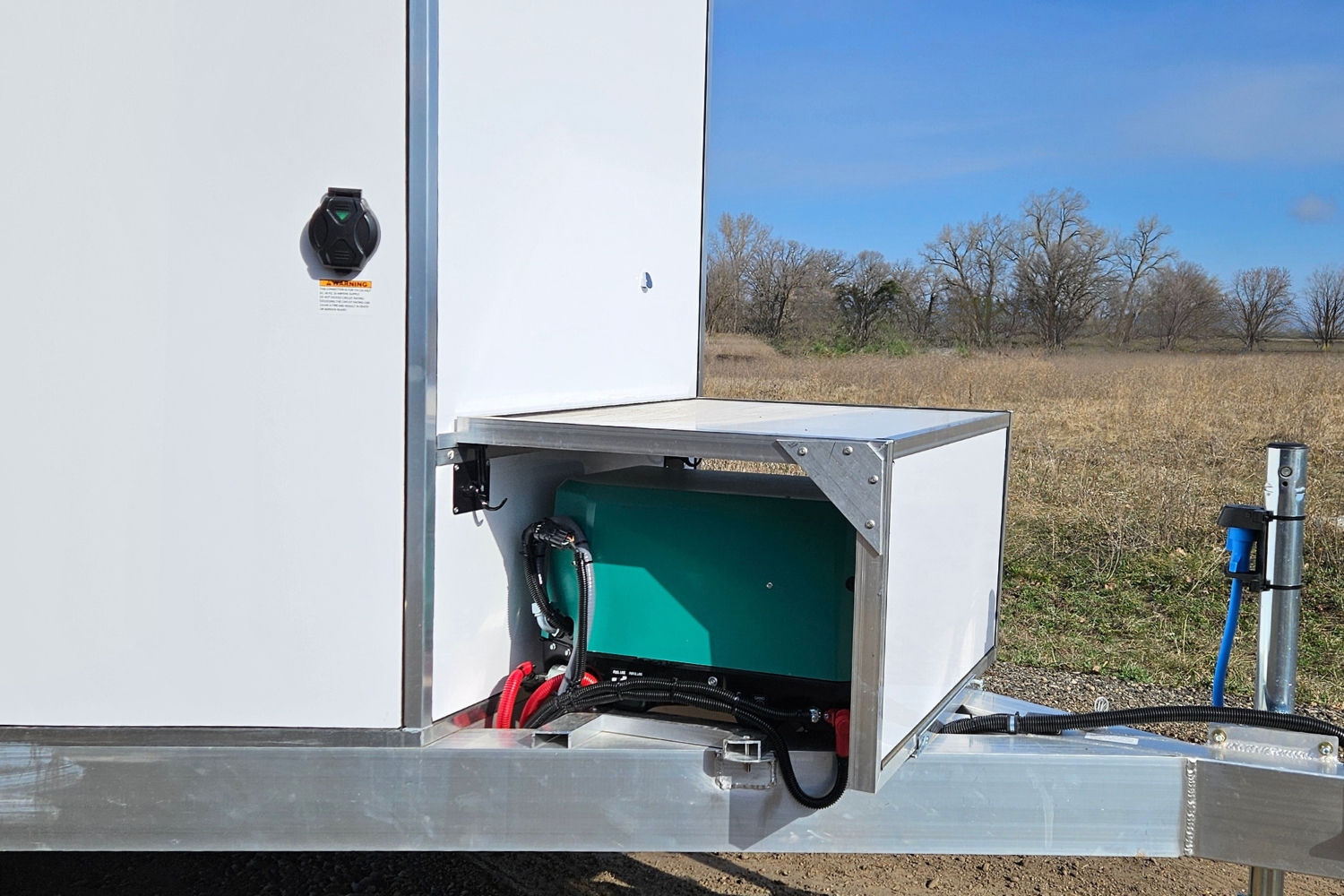

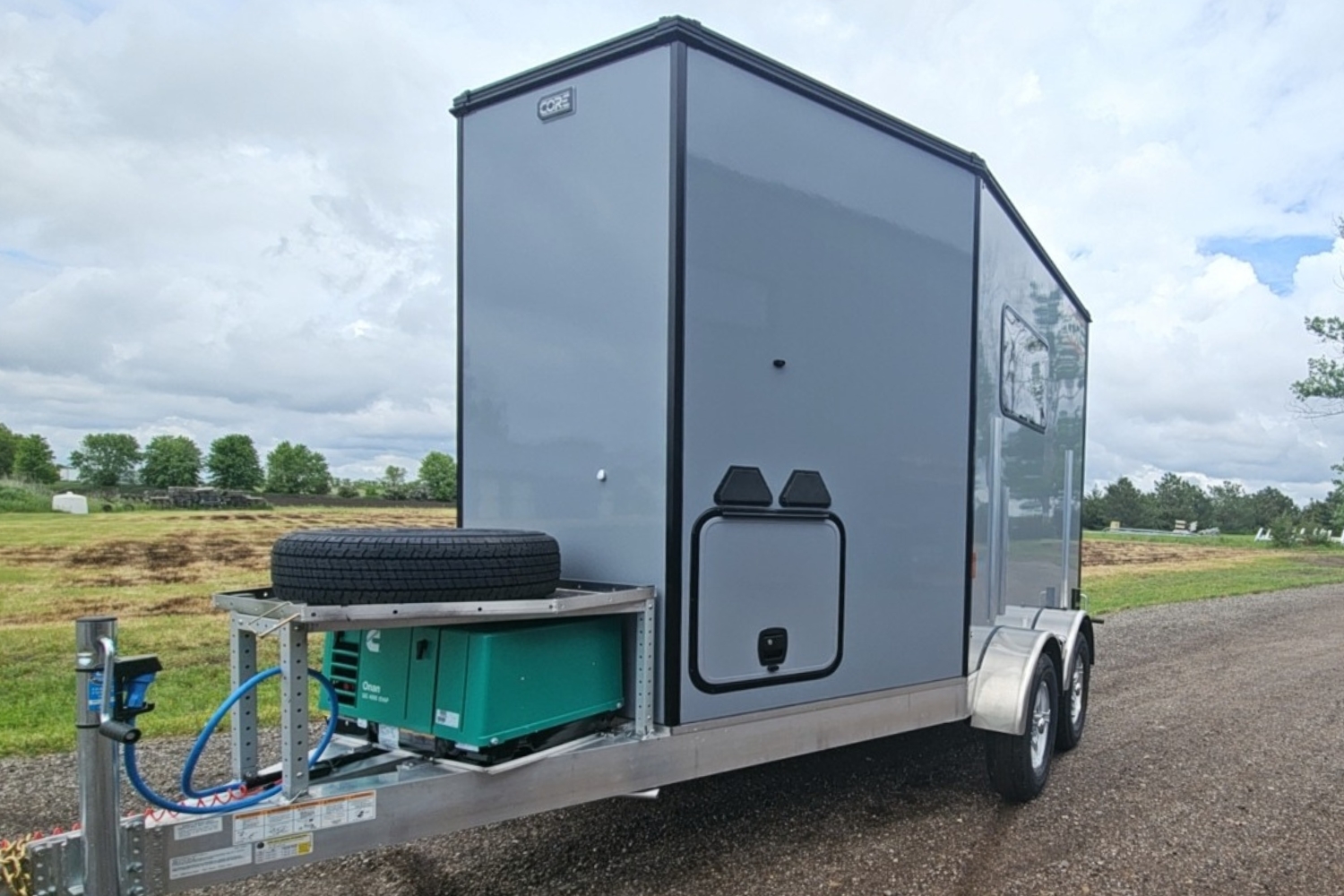

Generators

Whether you prefer a portable or hand mounted, we have options…

– Honda 7000 EUiS

– Cummins Portable P2500i w/ Remote Start (Gasoline)

– Cummins Portable P4500i w/ Remote Start (Gasoline)

– Cummins Onan QG 2800 EFI (Gasoline)

– Cummins Onan QG 4000 (Gasoline)

– Cummins Onan Q6 5500 EFI (Gasoline)

– NPS Y4500 ECO (Gasoline)

– NPS Y5500 ECO (Gasoline)
